Automatics Essentials Solution
This solution provides a complete introduction to pneumatic circuit design and construction. The comprehensive selection of components works together with the included curriculum courseware and teach ...
Smart Factory
RUGGED, DESKTOP AND EASY TO USE

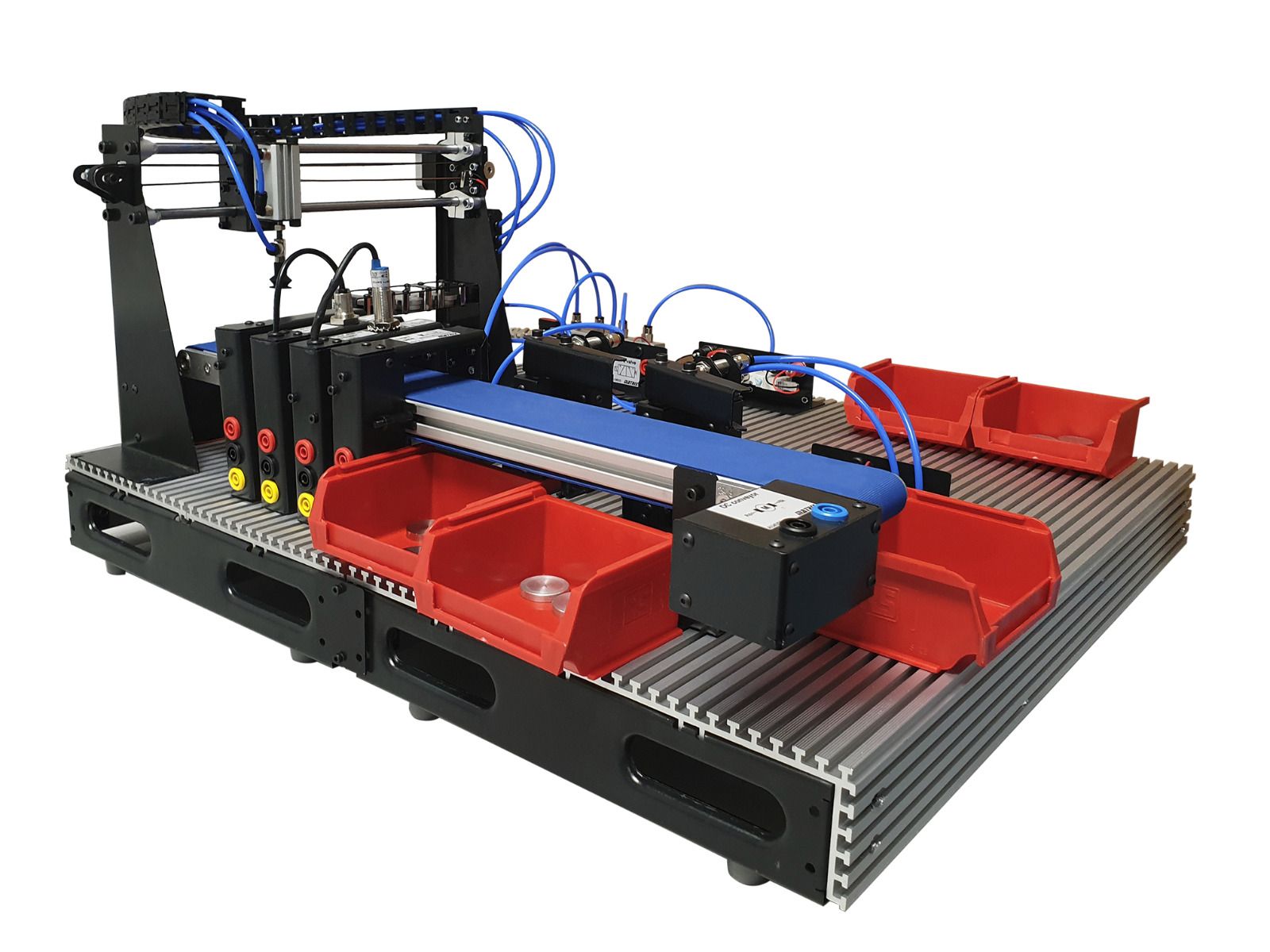

Students gain an understanding of conveyor systems, sensing systems, pneumatic pick and place technology, DC motor drives, and stepper motor drives. The factory includes several colored discs made from plastic and other materials. A conveyor belt moves these pieces into the factory, where user-programmed sensors sort the discs into multiple rejection bins. A suction device picks some off the conveyor, and a stepper motor-controlled gantry sorts the discs into appropriately colored containers.
The smart factory is self-contained and can be stored in one of our standard trays. The smart factory can be used with Siemens (or other brands) 12V or 24V) PLC and is also compatible with our MIAC .
Smart Software
The Smart Factory is controlled in one of two ways. Users can either opt to control using two of our dsPIC-driven MIAC controllers, which are educational PLC’s and perfect for younger students to understand the capabilities and possibilities of industrial smart factories.

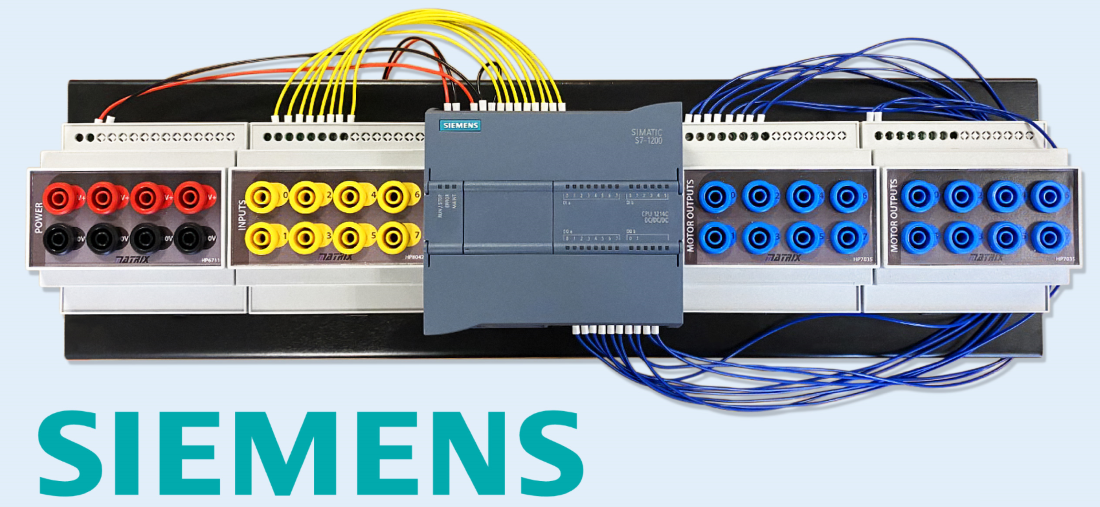

Alternatively, our Siemens add-on for the smart factory allows students to program the system using an industrial grade S7-1200PLC. This is provided on a DIN rail bracket with adaptor modules. As a Siemens education partner, we can provide you with software to control these upon request.

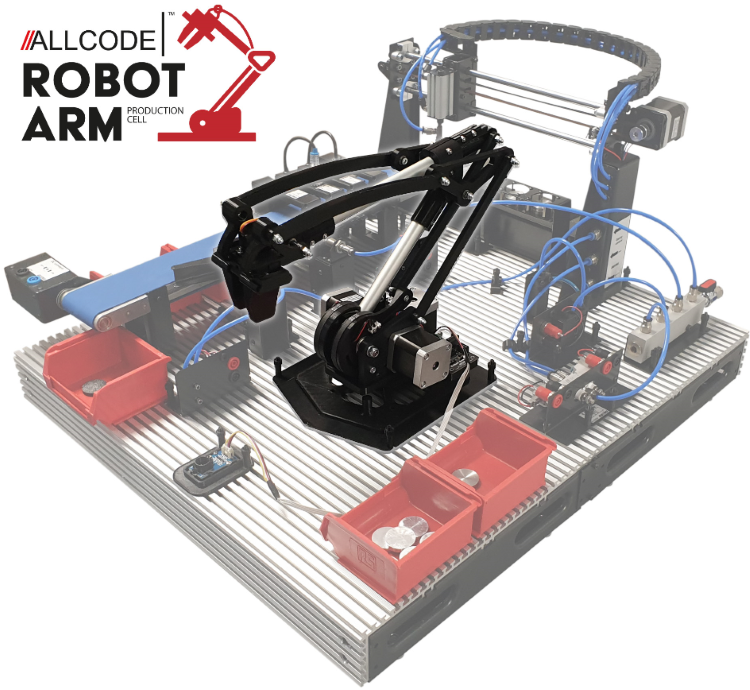

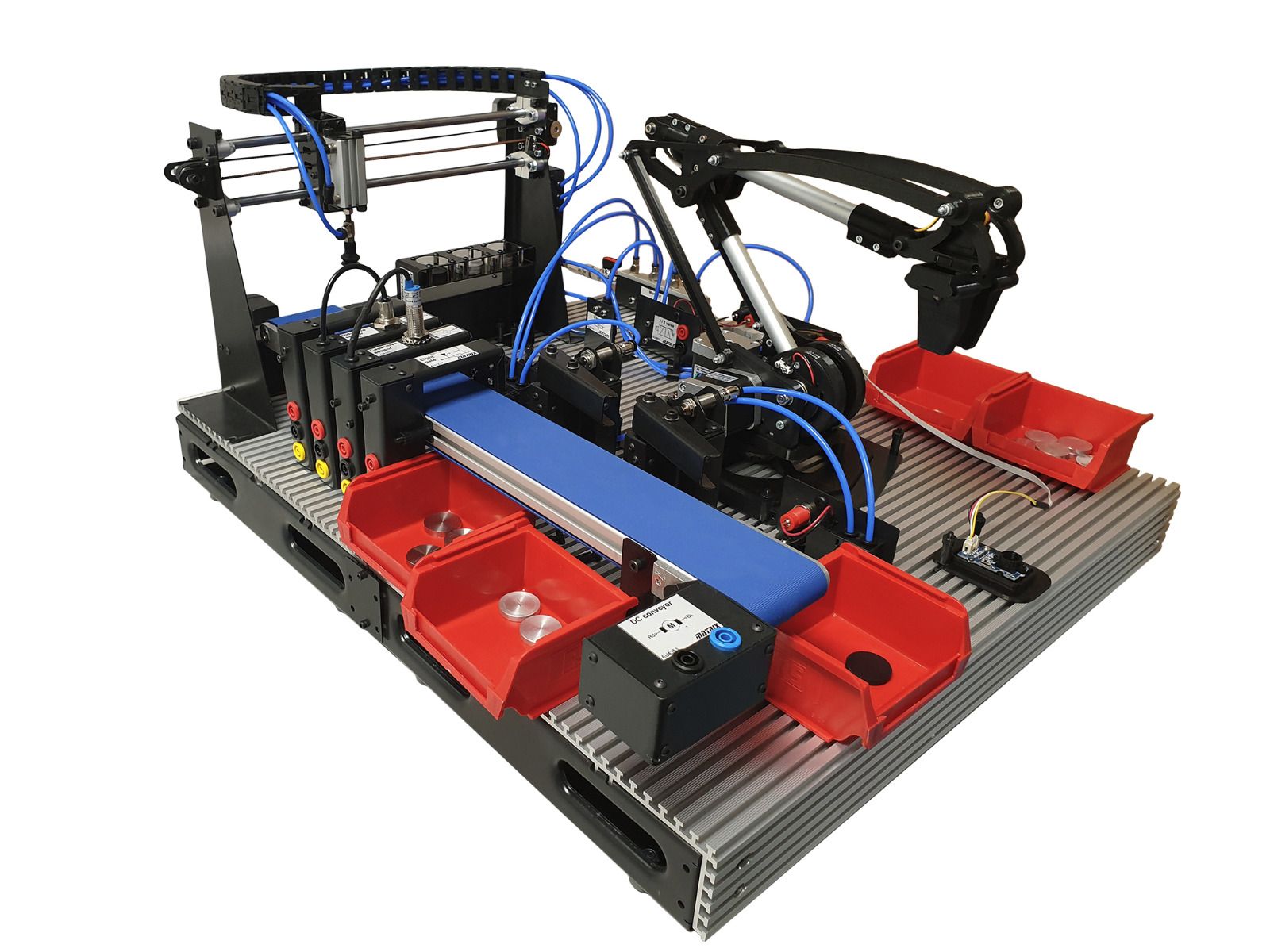

The Smart Factory is compatible with the AllCode robot arm production cell, which can be added to provide a powerful and interesting Industry 4.0 solution.
Key Features
- Gantry system with three pneumatic inputs
- Gantry driven by stepper motor driver
- Conveyor system 60mm x 500mm in size
- DC and Stepper motor drives
- Inductive and Capacitive sensors
- 2 laser light gates with rejection components
- Pneumatic pick and place technology
- Robot arm integration gives powerful Industry 4.0 learning solution
Learning Objectives
- Factory control and automation systems
- Software design for automation
- DC motor and stepper drives
- Conveyor and gantry systems
- Vacuum pick and place systems
- Component sensing and sorting
- System design with more than one controller (some systems)
More Information
Related Products:
Automatics control add-on without MIAC
By following the curriculum included with pneumatics control add-on kit, students will learn how the combination of a controller and custom software can create powerful and flexible pneumatic systems. ...
Pneumatic Control with S7-1200 Siemens PLC add-on
This kit can be added to the Automatics essentials solution to produce learning outcomes for those wishing to study about rugged, industrial PLCs. By following the provided curriculum, students will l ...
