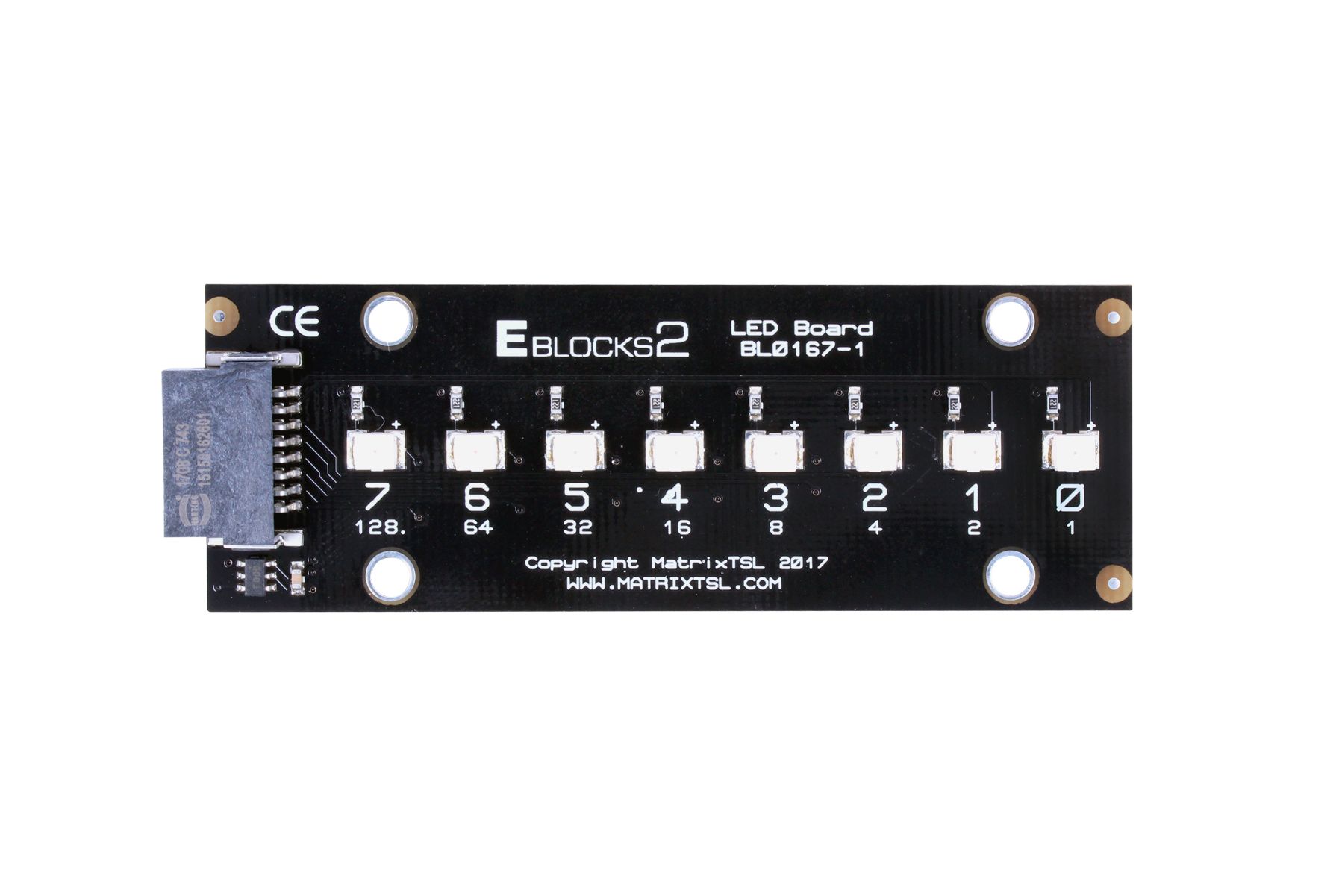

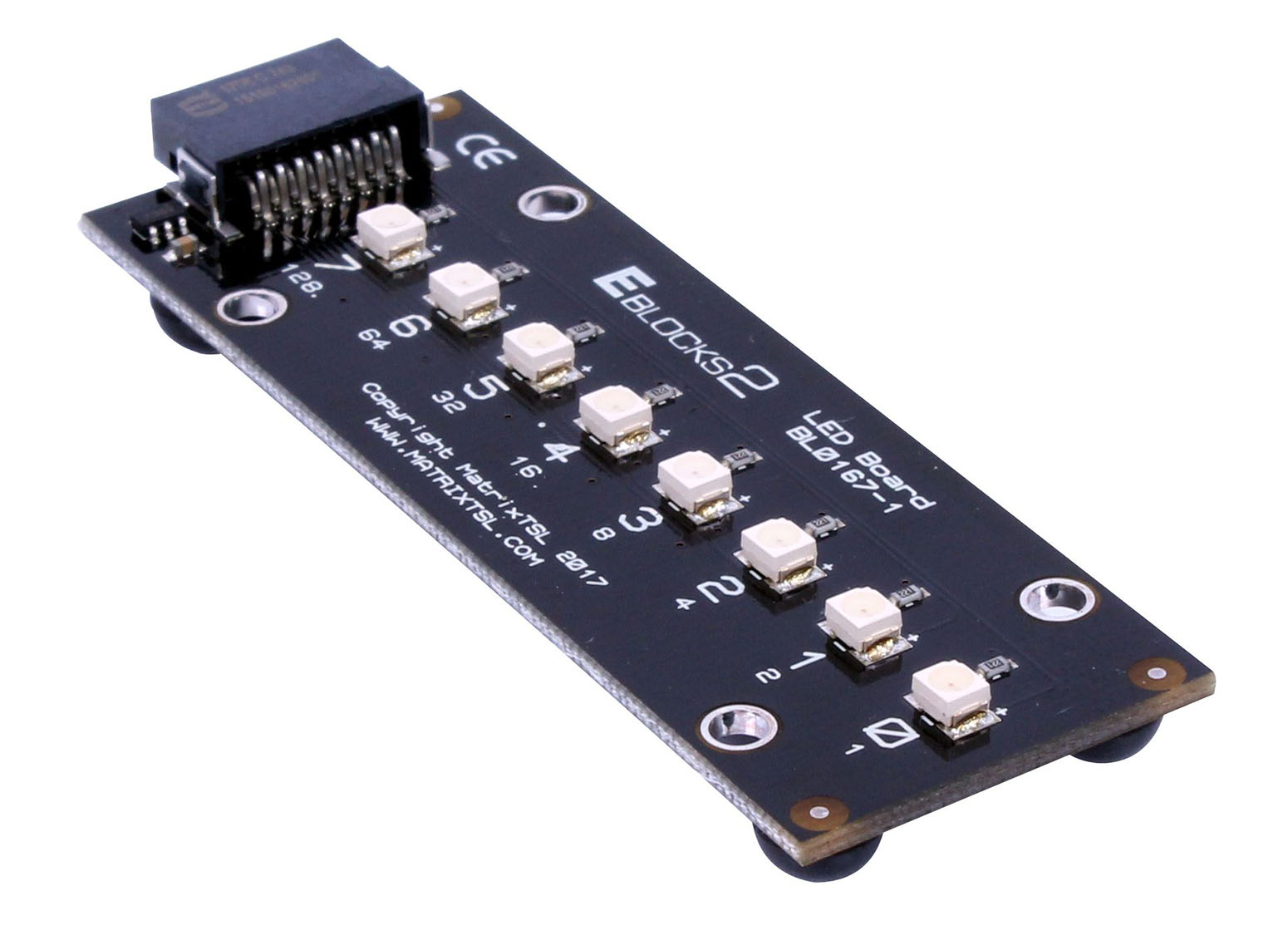

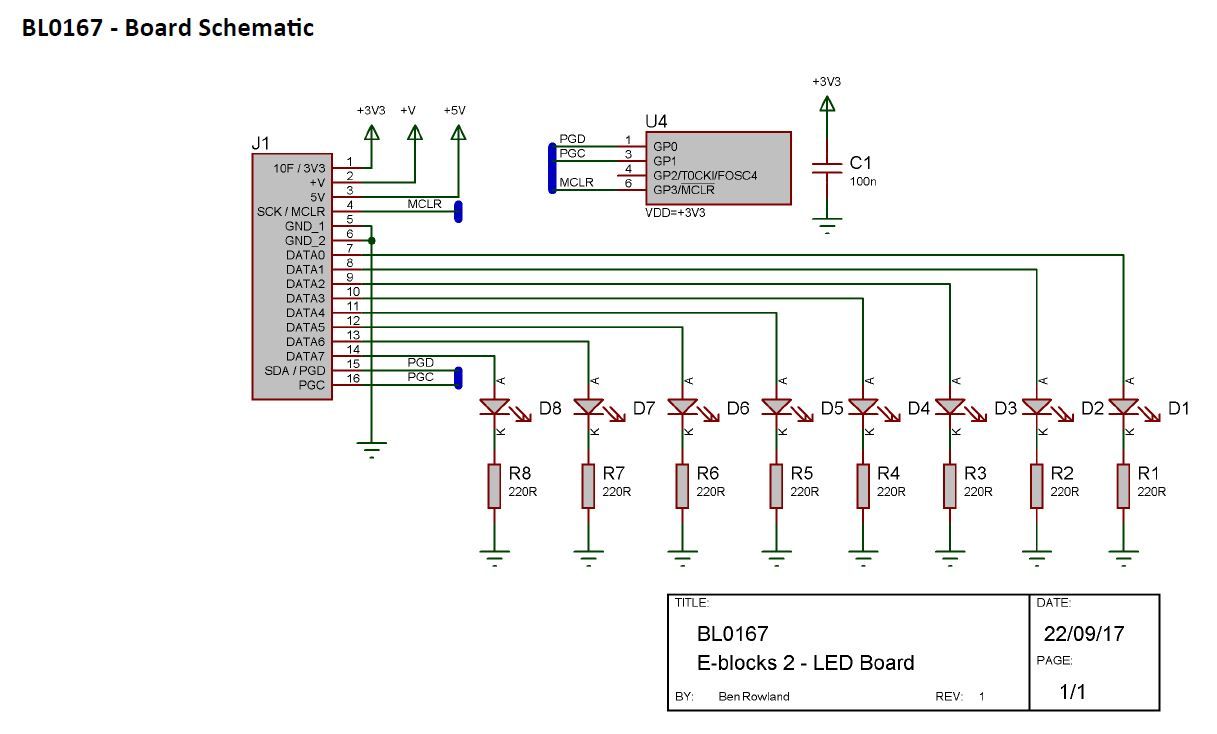

The E-blocks2 LED board (BL0167) allows you to indicate what is happening or the ongoing real-time status of the system. LEDs can be driven digitally using on or off-output states or an analog way using pulse width modulation (PWM) techniques.
If using this board with First Generation downstream E-blocks, then you will need an E-blocks2 upstream to E-blocks downstream connector.
The E-blocks2 AVR Programmer (BL0086) supports multiple languages: Assembly, C, Arduino IDE, and Flowcode. It uses the mLoader tool for programming. Equipped with an ATMEGA328P microcontroller, it conveniently connects port pins through E-blocks2 sockets. Power can be supplied externally or via micro USB.
The USB-connected 8-bit PIC programmer (BL0011) enables robust microcontroller programming and debugging on a PC. It supports programming languages like Assembly, C, and Flowcode, with a free download option for the mLoader tool to program the PIC on the board.
The USB-connected Arduino Shield (BL0055) serves as a robust microcontroller programming and debugging platform for PC. It's compatible with programming languages like Assembly, C, Arduino IDE, and Flowcode, offering versatile options for users.
