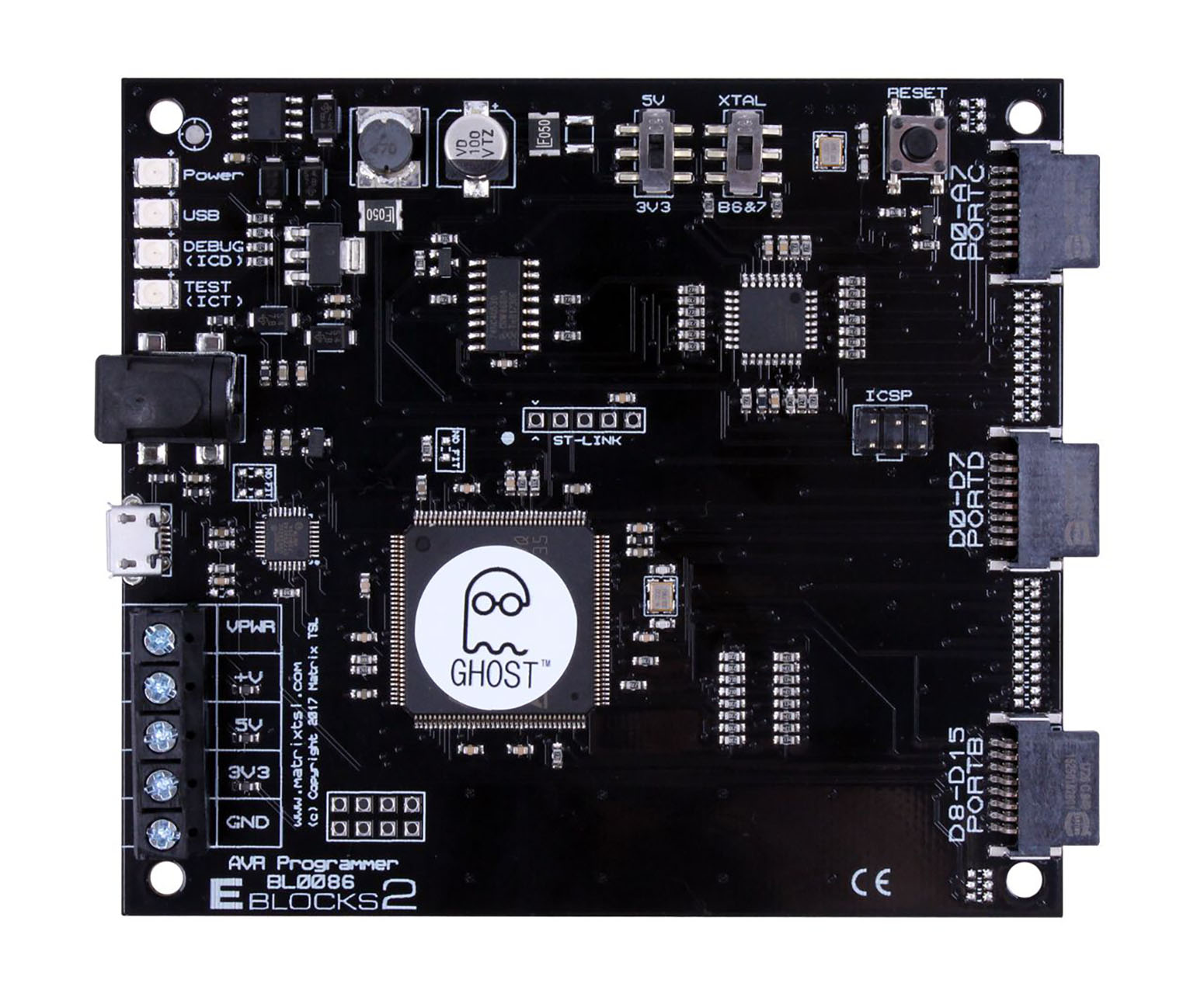

The E-blocks2 AVR Programmer (BL0086) can be used with various programming languages, including Assembly, C, Arduino IDE, and Flowcode. To program the AVR on the board, a free tool called mLoader is available to download.
The board comes complete with a powerful ATMEGA328P microcontroller. The board presents all port pins collected together as E-blocks2 sockets. The board takes power from an external power supply or micro USB port.
The E-blocks2 board is compatible with Ghost technology. Using the board with Flowcode allows the use of the advanced Ghost debugging features, including in-circuit debugging, real-time pin monitoring, and bus decoding.
If using this board with First Generation downstream E-blocks, then you will need an E-blocks2 upstream to E-blocks downstream connector.
The USB-connected Arduino Shield (BL0055) serves as a robust microcontroller programming and debugging platform for PC. It's compatible with programming languages like Assembly, C, Arduino IDE, and Flowcode, offering versatile options for users.
The USB-connected 8-bit PIC programmer (BL0011) enables robust microcontroller programming and debugging on a PC. It supports programming languages like Assembly, C, and Flowcode, with a free download option for the mLoader tool to program the PIC on the board.
The 16-bit PIC programmer (BL0032) can be used with various programming languages including Assembly, C and Flowcode. To program the dsPIC on the board a free tool called mLoader is available.
