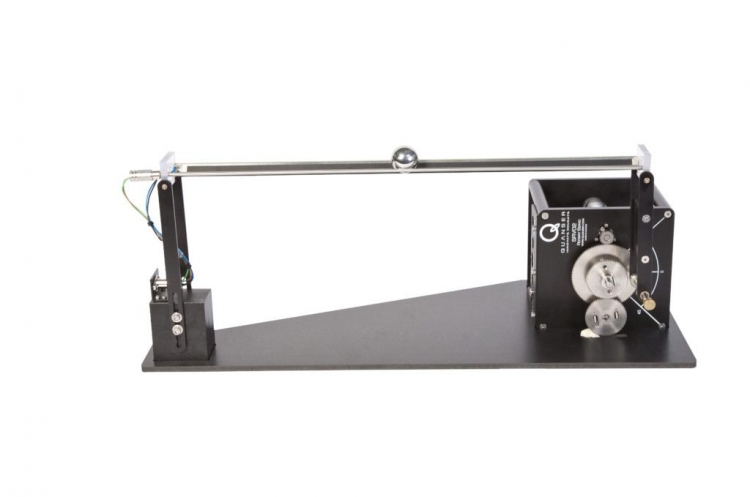

The Ball and Beam module is ideal to introduce various control concepts related to unstable closed-loop systems. You can use it to demonstrate real-world control challenges such as aircraft roll control. The Ball and Beam module attaches to the Rotary Servo Base Unit.
This module consists of a steel rod in parallel with a nickel-chromium, wire-wound resistor forming the track on which the metal ball is free to roll. The track is effectively a potentiometer, outputting a voltage that’s proportional to the position of the ball.
When coupled to the Rotary Servo Base Unit, the tilt angle of the beam can be controlled by changing the servo gear angle. The Ball and Beam module can be operated in stand-alone mode, and the ball position can be controlled via the user interface.
The following additional components are required to complete your workstation, and are available separate:

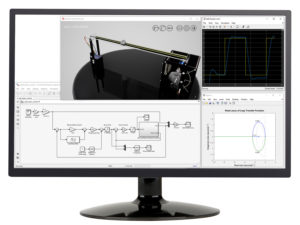

QLabs Virtual Ball and Beam is a fully instrumented, dynamically accurate digital twin of the Quanser Ball and Beam system. It behaves in the same way as the physical hardware and can be measured and controlled using MATLAB®/Simulink® and other development environments. With QLabs Virtual Ball and Beam, you can enrich your lectures and activities in traditional labs, or bring credible, authentic model-based lab experiences into your distance and online control systems course.
