Linear Flexible Joint with Inverted Pendulum
The linear flexible inverted pendulum challenges students to gain advanced modeling and control experience by controlling both the damping of a flexible link, and an unstable inverted pendulum.

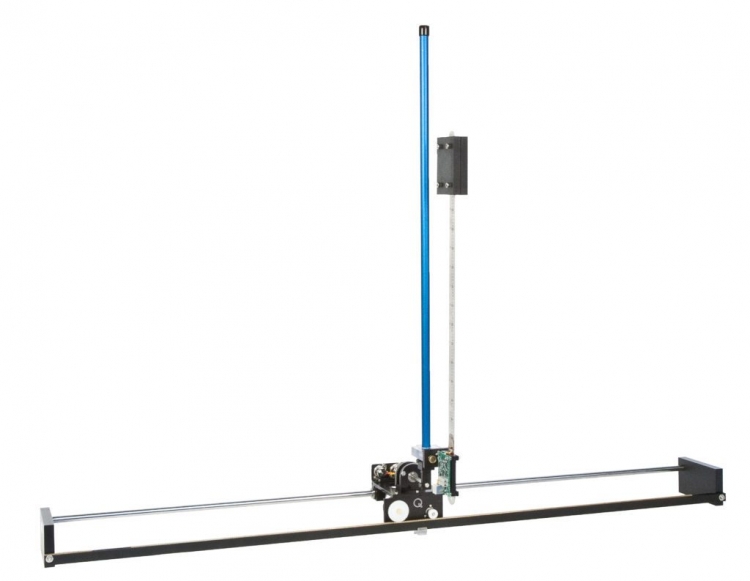

The Linear Flexible Inverted Pendulum module augments the classic inverted pendulum challenge by including a flexible link that requires balancing. The Linear Flexible Inverted Pendulum module attaches to the Linear Servo Base Unit and has both a rigid long rod and a flexible link. The goal is to balance both pendulums using the base angle measurement as well the deflection angle of the flexible link.
Features
- High-resolution optical encoders to sense pendulum angles
- Strain gage to measure flexible pendulum deflection
- 24-inch rigid blue pendulum and flexible link with end-weight
- Easy-connect cables and connectors
- Fully compatible with MATLAB®/Simulink® and LabVIEW™
Courseware
Modeling Topics
- Derivation of dynamic model using Lagrange
- State-space representation
- Linearization
Control Topics
- Linear-quadratic regulator (LQR)
Workstation Configuration
The following additional components are required to complete your workstation, and are available separately:
For Simulink
- QUARC® add-on for MATLAB®/Simulink®
- Linear Servo Base Unit
- Quanser VoltPAQ-X1 linear voltage amplifier
- One of the following DAQ devices:
- Quanser Q2-USB
- Quanser Q8-USB
- Quanser QPIDe
For LabVIEW
- Quanser Rapid Control Prototyping (Q-RCP) Toolkit® add-on for NI LabVIEW™
- Linear Servo Base Unit
- Quanser VoltPAQ-X1 linear voltage amplifier
- One of the following DAQ devices:
- NI CompactRIO with Quanser Q1-cRIO
- NI myRIO with Quanser Terminal Board
- Quanser Q2-USB
- Quanser Q8-USB
- Quanser QPIDe
