Cooling Towers

Item Number:

EC1000 - Experiment

TecQuipment | Engineering Learning Systems

TecQuipment | Engineering Teaching Apparatus

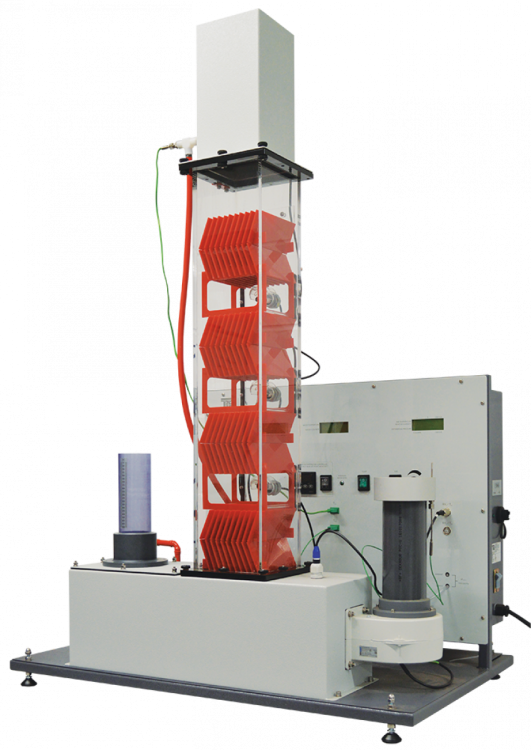

This low-maintenance, bench-mounting product contains a heated water tank, a pump, a ducted fan and an instrument panel. Each cooling column fits securely to the heated water tank.

An electronic controller ensures a constant heated water temperature throughout the tests. The centrifugal pump delivers the heated water to a spray nozzle at the top of the column. The water sprays into the column, passing over ‘packing’ inside the column and returning to the heated water tank. The fan directs air upwards through the column in counter flow to the water, extracting the heat. Electronic sensors measure the air and water flow, humidity, pressures and temperatures at key points, shown on clear, multi-line displays. This gives all measurements needed to understand the evaporative cooling tower operation. Controls for the fan and water circuits allow the students to adjust the flow rates for a full range of experiments. A clear tube above the heated water tank allows the user to measure the water lost to evaporation.

The Cooling Towers apparatus comes with one tower as standard, for base experimentation. For comparison and additional experiments, TecQuipment offers four optional cooling columns:

The equipment does not need a computer, as the displays show all the measurements. However, TecQuipment has included the powerful VDAS® inside the product. When connected to a suitable computer, VDAS® collects and displays accurate, real-time data quickly and easily. It also displays live psychrometric charts.

Learning Outcomes Features Recommended Ancillaries

Learning Outcomes

How key variable affect the performance of a cooling tower, including:

Variation of water flow rate
Variation of air flow rate
Packing density and arrangement
Variation of water temperature
Energy and mass balance

Key Features

Includes TecQuipment’s Versatile Data Acquisition System (VDAS®) for live displays of air temperatures and relative humidity using a psychrometric chart
Measures evaporated water loss for a complete understanding of the cooling process
Three optional interchangeable columns containing diff erent packing densities and arrangements
One optional interchangeable column with no packing to demonstrate free-fall cooling
All columns have clear sides for a full view of the heat transfer process
Variable water and air fl ow controls to maximise heat transfer experiments

Standard Features

Supplied with comprehensive user guide
Five-year warranty
Made in accordance with the latest European Union directives
ISO9001 certifi ed manufacturer

Recommended Ancillaries

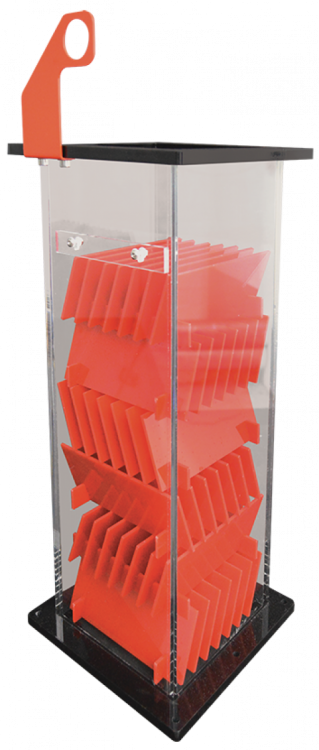

COOLING COLUMN TYPE A

EC1000a - Ancillary

This cooling column is an alternative to the standard cooling colum supplied with the bench-mounted Cooling Towers experiment (EC1000), with a packaging density of 110 m2.m-3.

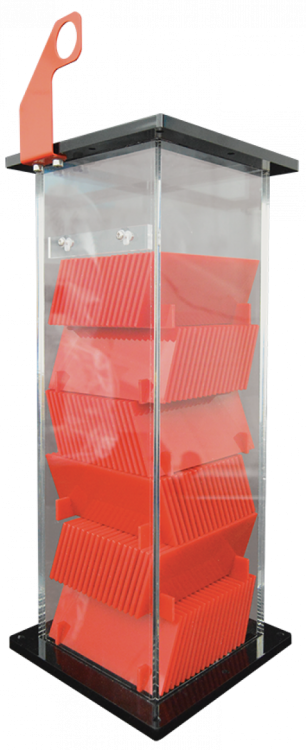

COOLING COLUMN TYPE B

EC1000b - Ancillary

This cooling column is an alternative to the standard cooling colum supplied with the bench-mounted Cooling Towers experiment (EC1000), with a packaging density of 77 m2.m-3.

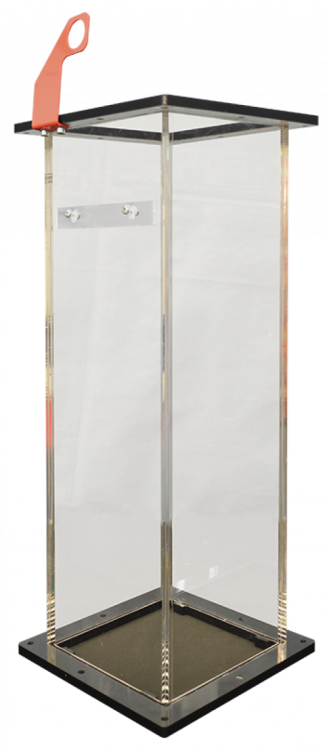

COOLING COLUMN TYPE EMPTY COLUMN

EC1000c - Ancillary

This cooling column with no packing, acts as a spray column and is an alternative to the standard cooling column supplied with the bench-mounted Cooling Towers experiment (EC1000).

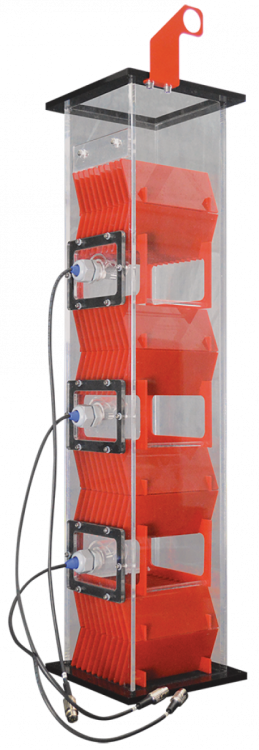

COOLING COLUMN PACKAGING CHARACTERISTICS

EC1000d - Ancillary

This cooling column with three additional relative humidity and temperature sensors spaced through the packing, is an alternative to the standard cooling column supplied with the bench-mounted Cooling Towers experiment (EC1000).
