TecQuipment’s Process Trainer is an educational package that mimics industrial process engineering. The fully integrated, self-contained teaching apparatus gives a comprehensive range of process control experiments, from basic to advanced. Using water as the working fluid, the equipment allows safe, practical experiments on control of flow, liquid level, temperature and pressure. Students can study each of these separately or in combinations.
The equipment consists of an experiment module, a control module and TecQuipment’s CE2000 software.

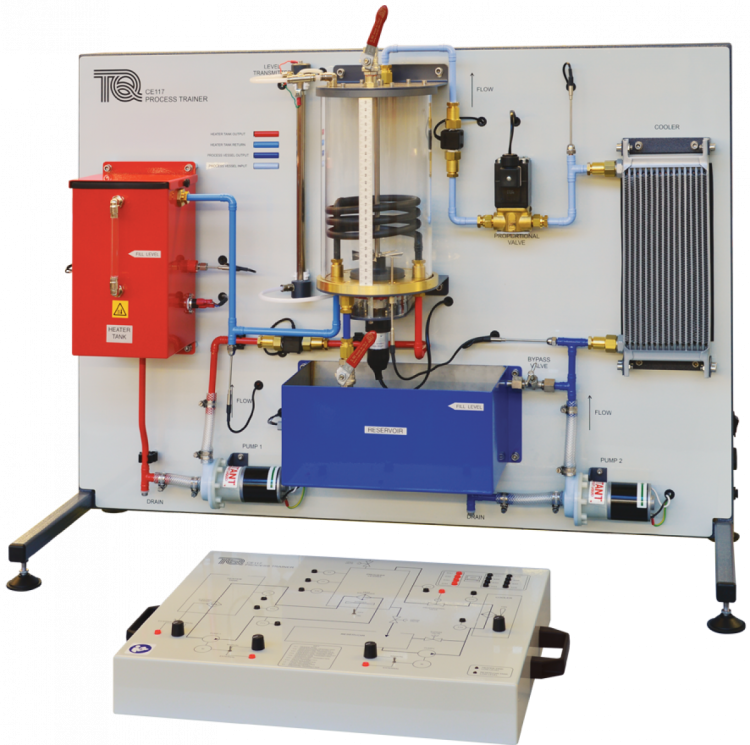

The experiment module includes all the essential parts to allow students to create process control systems. The main part is the process vessel, with a stirrer, a temperature sensor, level and pressure sensors, a heat exchanger and vent valve. It also includes two loops, linked by the heat exchanger in the process vessel. One loop is the heating loop with pump, heater tank and heater. The other loop is a process and cooling loop with pump, cooler, fan, valves and reservoir.
The control module links to the experiment module to provide access to the connections of each part on the experiment module. It includes a clear mimic diagram with switches and controls to allow manual control of pump speed, cooler-fan speed, heater power and stirrer. It also includes sockets and a built-in computer interface. This allows the user to link each part of the experiment module to a suitable computer (not included) for remote control and data acquisition.
Supplied with the equipment is TecQuipment’s Control Software (CE2000, see separate datasheet) for supervisory control of the CE117 and data acquisition. You need a suitable computer to use the CE2000 software.
A self-contained mobile module for flow process control experiments to illustrate the principles of single-loop control and the calibration & tuning of controllers, transmitters, converters and valves. Demonstrates feedback control, P/PI/PID control and flow control. Cascade control experiments available when used with the optional pressure or level process training systems. Distributed control available when used with optional computer control system.
A self-contained mobile module for level process control experiments to illustrate the principles of single-loop control and the calibration & tuning of controllers, transmitters, converters and valves. Demonstrates feedback control, P/PI/PID control and level control. Cascade control experiments available when used with an optional flow process training system. Distributed control available when used with an optional computer control system.
A self-contained mobile module for temperature process control experiments to illustrate the principles of single-loop control and the calibration & tuning of controllers, transmitters, converters and valves. Demonstrates feedback control, ON-OFF control, P/PI/PID control, distance-velocity lag and temperature control. Distributed control available when used with an optional computer control system.
