Bending Moments
Item Number:
ST8801

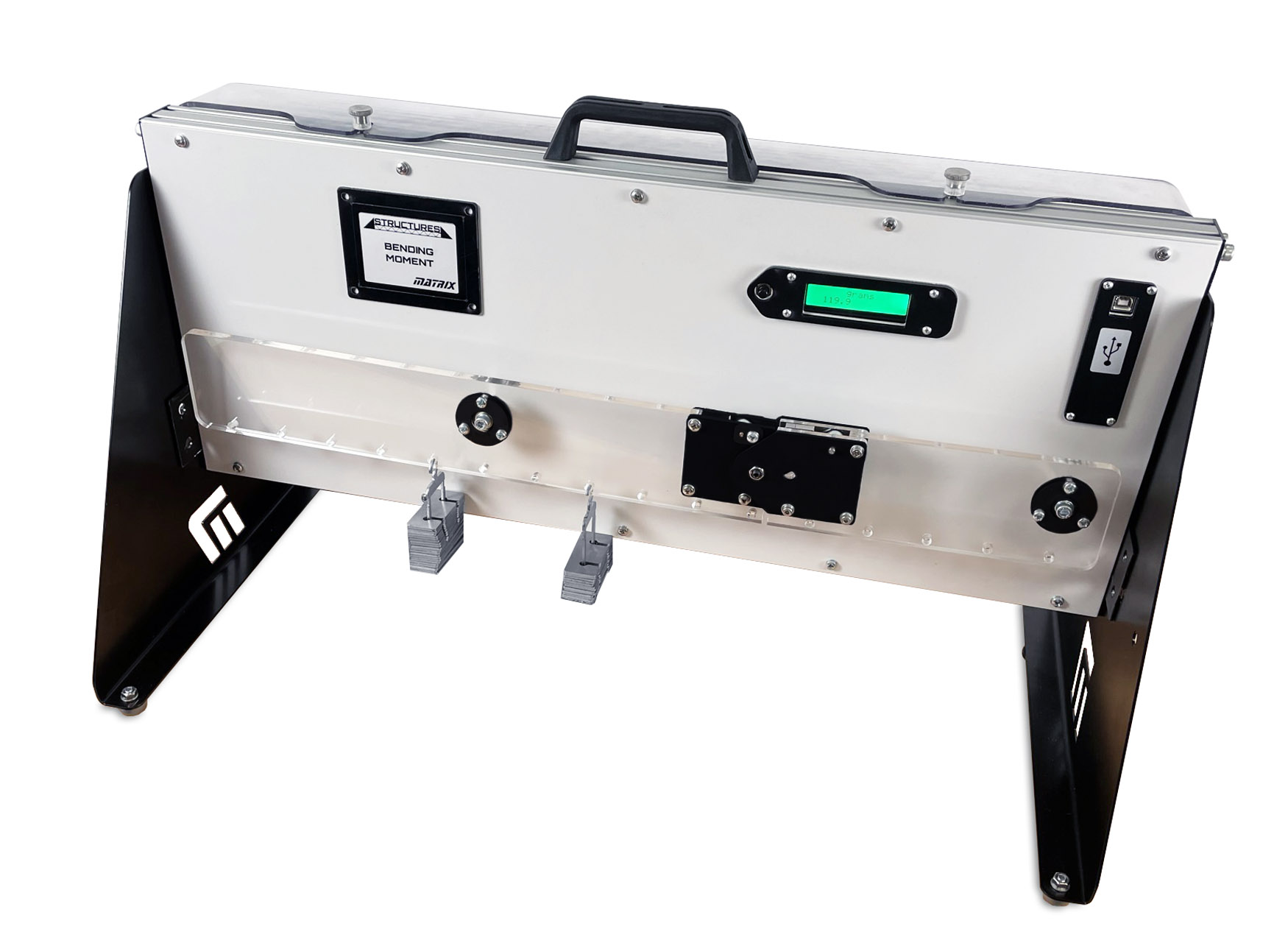

This kit allows students to apply loads to hangers suspended along a beam, held between two supports. One support allows rotational movement, acting as a pinned support, while the other allows translational movement, acting as roller support.
A load cell measures the bending moment due to the load applied by the student and students’ can then create positive and negative bending moments. Point loads and uniformly distributed loads can be applied across the beam for students to gain experience in various situations for their experimentation. An integrated load cell measures the force applied across the cut and is displayed on the built-in LCD display.
The display has a push button zero feature for the experimental setup. A USB cable powers the experiment to a PC or wall plug. If the USB is connected via a PC port, data acquisition can be output directly into excel or further experimental analysis and simulation.
Learning Objectives
- Bending moment at the cut due to a varying single point load
- Bending moment at the cut due to a moving single point load
- Bending moment at the cut due to a uniformly distributed load
- Bending moment at the cut due to a point load and uniformly distributed load in superposition
More Information
Related Products:
Deflection of Beams
Deflection of Beams This kit allows students to utilise a range of beams in order to understand the elastic properties of beams and cantilevers. Beams can be fitted to one support to form a cantilev ...
Torsion of Rods
Torsion of Rods This kit allows students to understand the torsional elastic properties of rods. Students choose from a selection of test rods and fit them to the experimental work panel. They can ad ...
