Complete Structures
The complete set includes:
- ST8801 - Bending moments
- ST4484 - Shear Force
- ST0454 - Reactions of a Simply Supported Beam
- ST5671 - Bending Stress
- ST9544 - Deflection of Beams
- ST0386 - Torsion of Rods
- ST6365 - Pin Jointed Frameworks

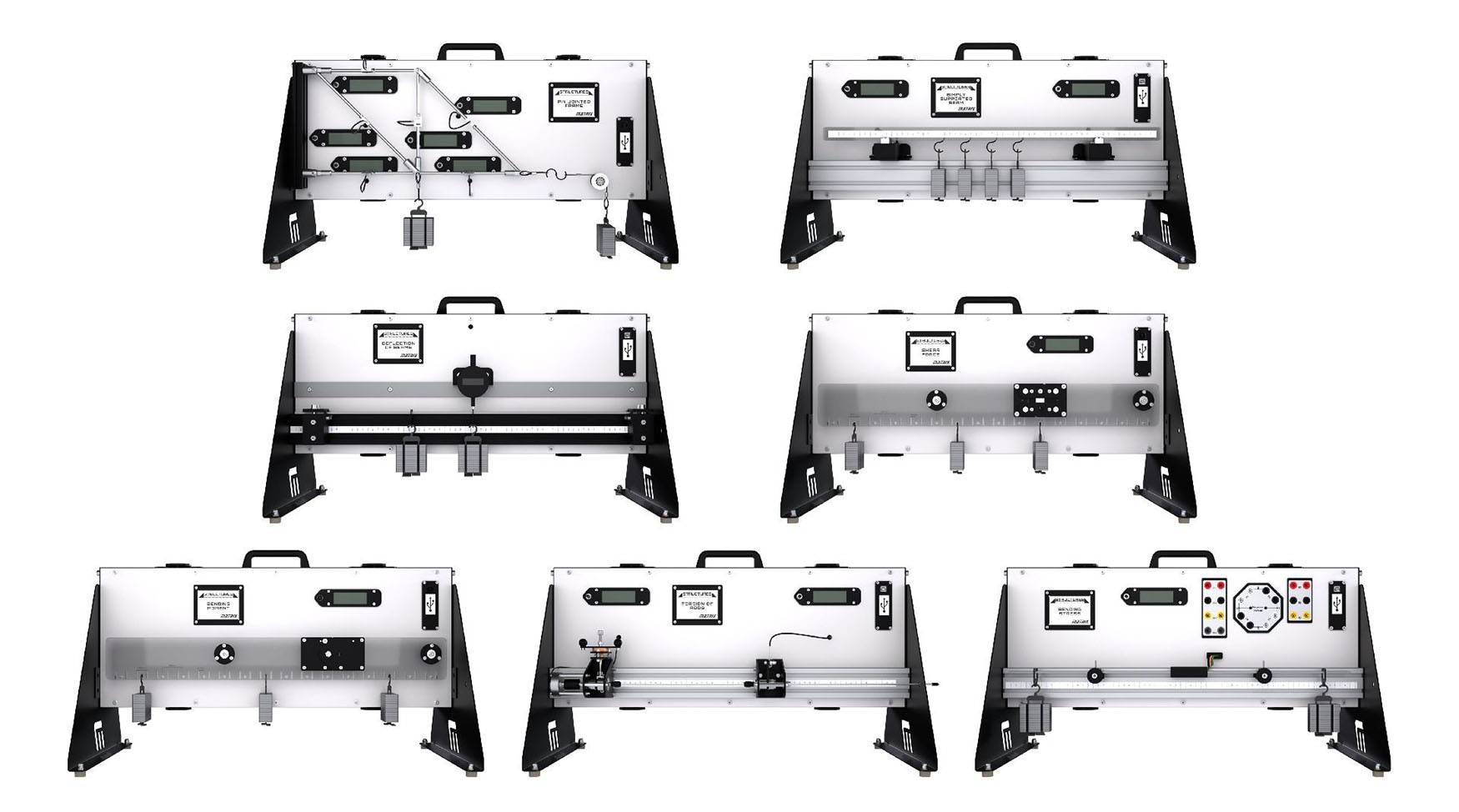

The complete set of Structures includes seven kits to teach students the commonly taught principles of Structures across colleges and universities worldwide in mechanical engineering.
Each kit in this range features a robust metal work panel fitted with removable legs. The legs attach to the back of the equipment for safe storage when not in use. A carry handle and plastic molded cover is also supplied to protect the system from any damage when not in use.
The experimental components are rugged and designed to stand up to the challenges of an educational lab. Connection to a PC is through a simple USB, meaning users can export data from their experiments to excel for analysis and simulation. Power is provided through the PC connection or a simple wall plug.
Each work panel is also supplied with built-in LCD's which are connected to the onboard controller, to provide the user with a manual method of collating results from their experiments.
