E-blocks upstream to E-blocks2 downstream connector
Item Number:
BL0113

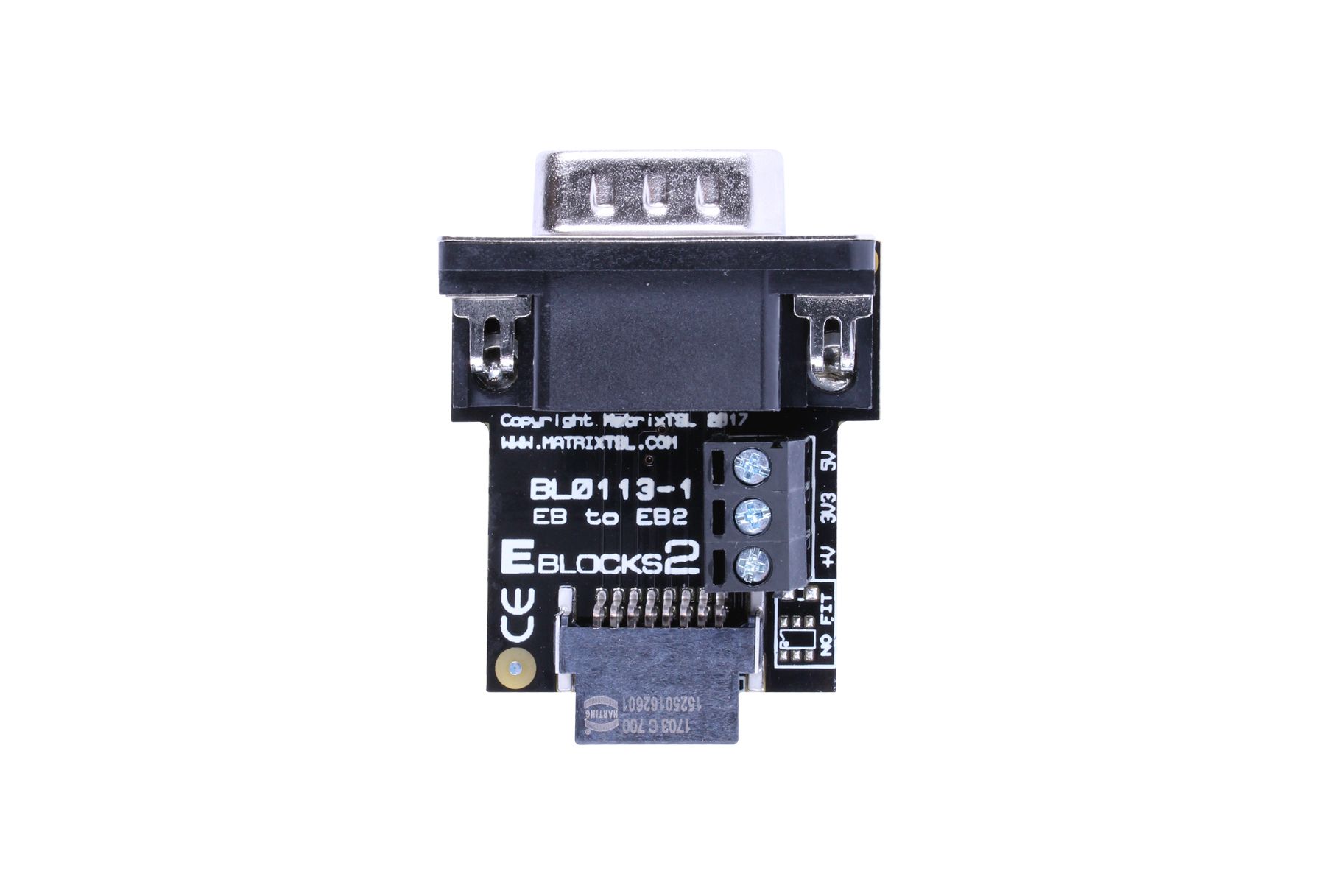

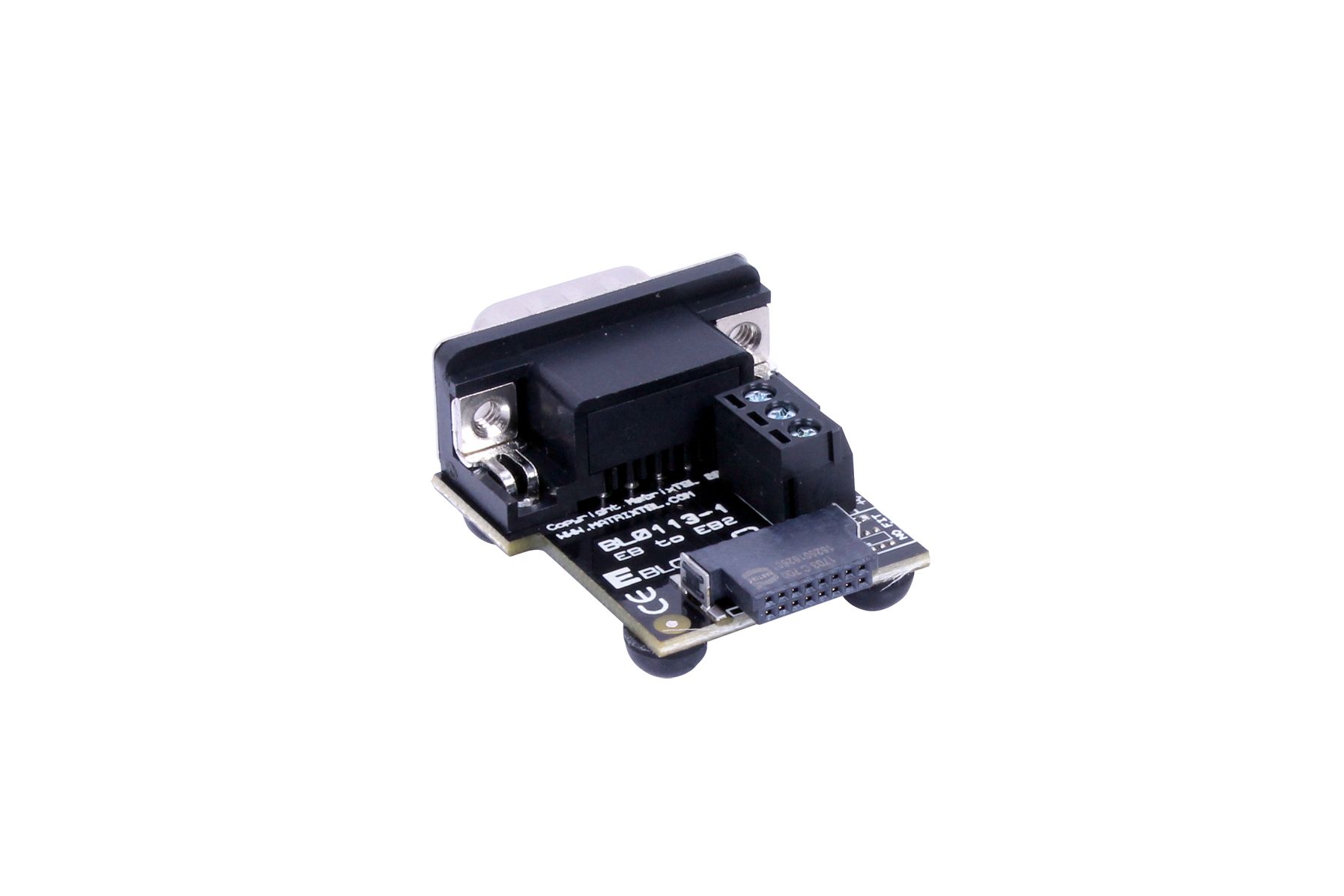

The E-blocks upstream to E-blocks2 downstream connector (BL0113) is useful if you already have a 1st Generation E-blocks programmer board that you want to use with the new E-blocks2 peripheral boards.
Screw terminals are provided on the board to allow for the various power rails to be supplied to the E-blocks2 downstream board. Only power rails required by the downstream board need to be connected.
