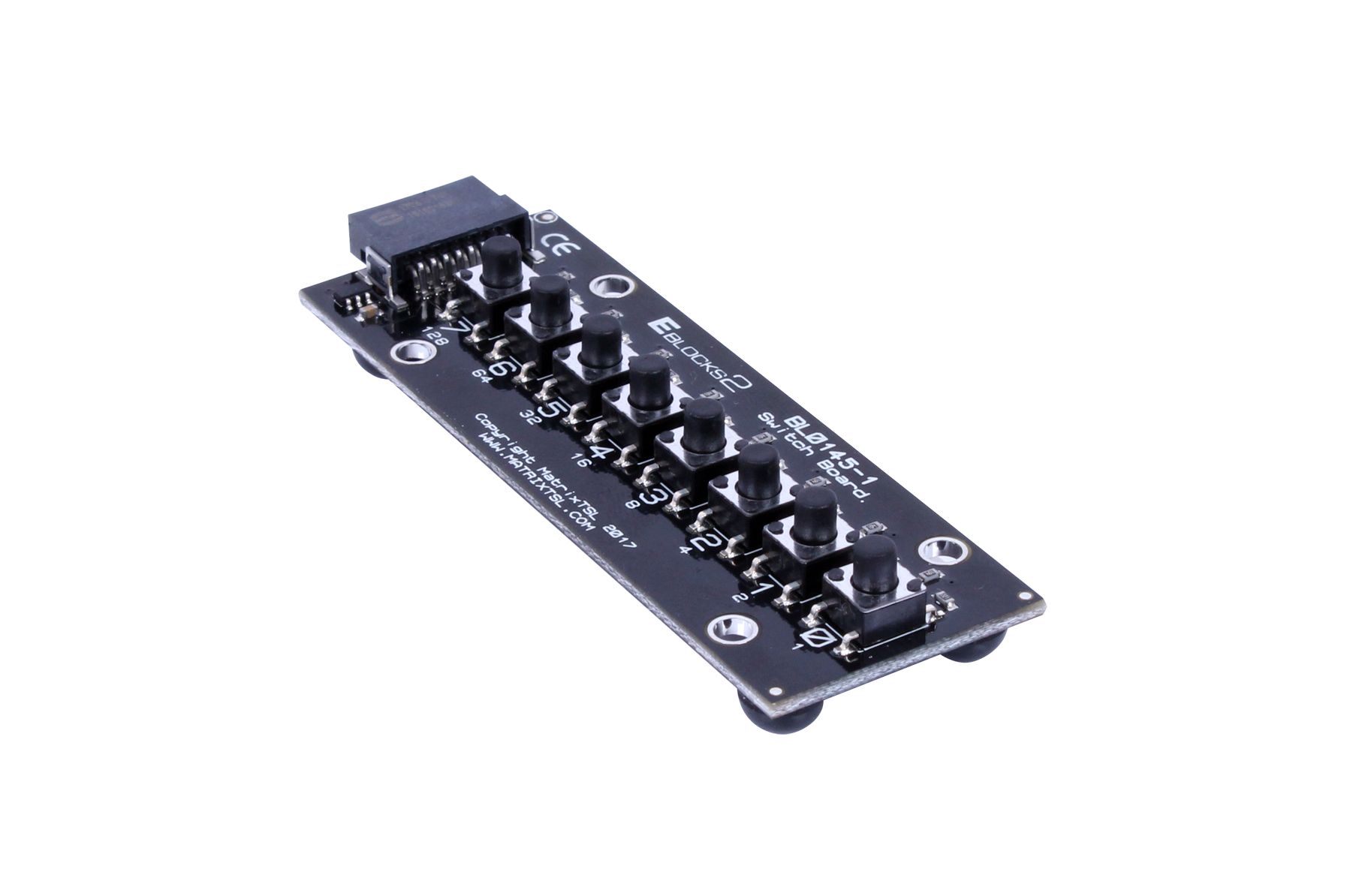

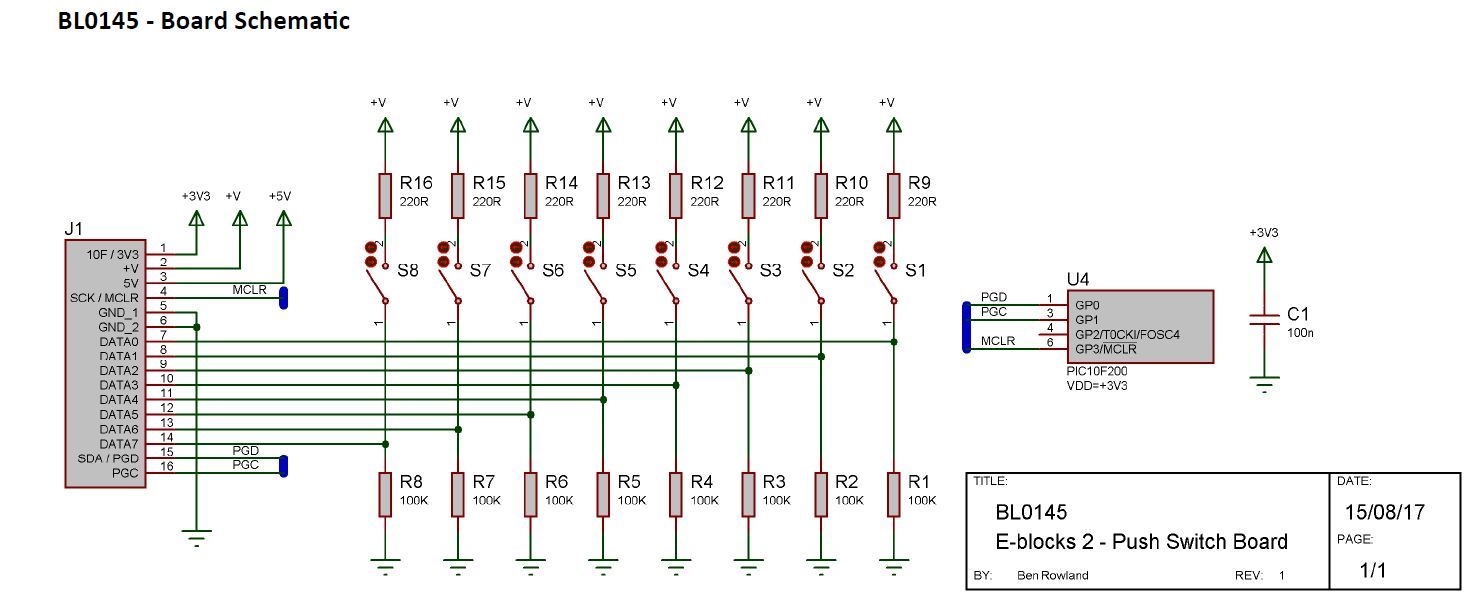

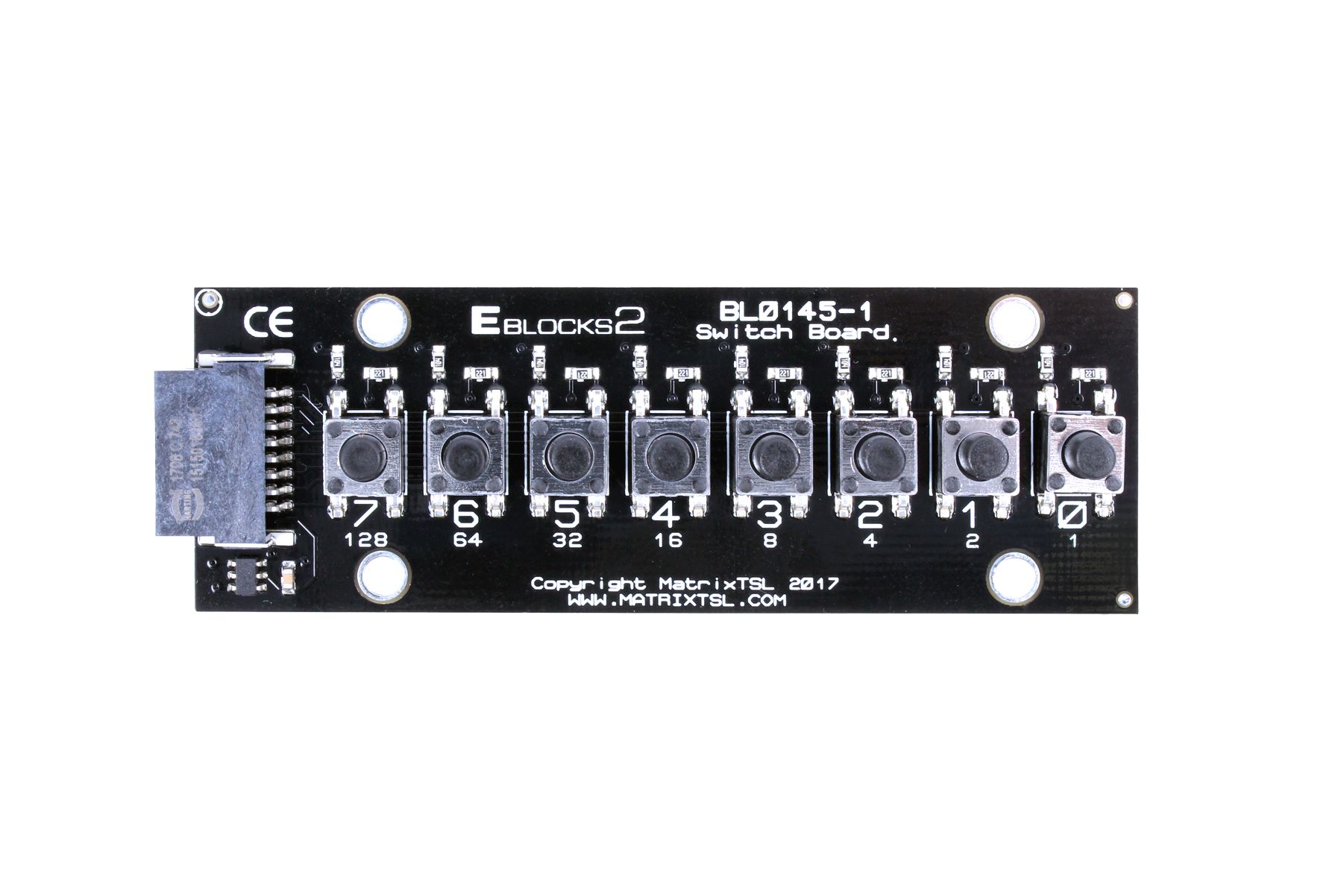

The E-blocks2 Switch x 8 (BL0145) is a valuable tool allowing you to control what is happening in the system. The switches are push to make and active high, meaning the voltage to the microcontroller port pins is low when the switch is not pressed and high when the switch is pressed.
If using this board with First Generation downstream E-blocks, then you will need an E-blocks2 upstream to E-blocks downstream connector.
