E-blocks2 PIC Multiprogrammer
Item Number:
BL0080

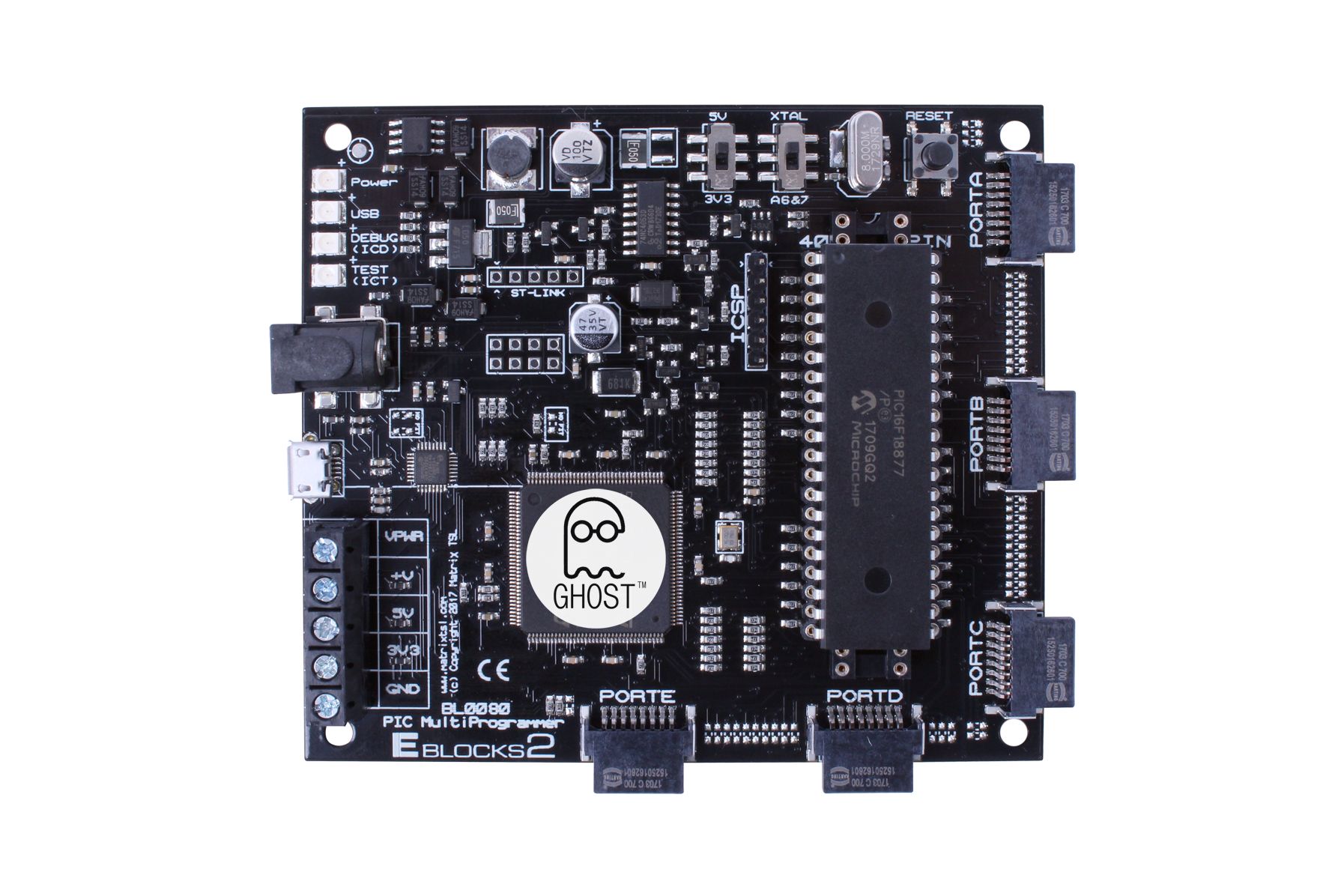

The 8-bit PIC Multi-programmer (BL0080) can be used with various programming languages, including Assembly, C, and Flowcode. To program the PIC on the board, a free tool called mLoader is available.
The board will program a wide range of 18, 28 and 40-pin PIC microcontroller devices from the PIC16F and PIC18F series. The board presents all port pins collected together as E-blocks2 sockets and takes power from an external power supply or from the micro USB port.
A powerful 40 pin PIC16F18877 device is shipped with the multi-programmer.
New features in E-blocks2 include:
- Power now routed via the connector - no more flying leads
- Board auto-ID functionality
- Flowcode automatic project set up
- Smaller footprint using up-to-date surface mount technology
- Over current resettable fuse protection
Ghost
The E-blocks2 board is compatible with Ghost technology. Using the board with Flowcode allows the use of the advanced Ghost debugging features, including in-circuit debugging, real-time pin monitoring, and bus decoding.
E-blocks > E-blocks2
If using this board with First Generation downstream E-blocks, then you will need an E-blocks2 upstream to E-blocks downstream connector.
