QLabs Virtual QUBE-Servo 3

Control Systems
Digital Experience
Mechatronics
Quanser QLabs Qube Servo 3

Virtual platform for distance and blended undergraduate control systems course

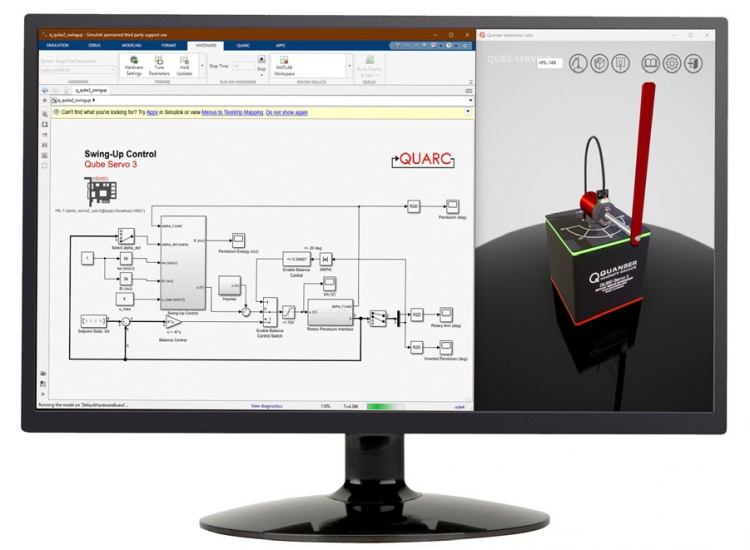

QLabs Virtual QUBE-Servo 3 replicates the classic QUBE-Servo 3 system faithfully, presenting a fully instrumented, dynamically accurate virtual twin. It mimics the behavior of the physical hardware, allowing measurement and control via MATLAB®Simulink® and similar development environments. This virtual platform enhances traditional lab sessions and facilitates authentic model-based lab experiences for remote or online control systems courses.

Offered as a 12-month, multi-seat subscription, QLabs Virtual QUBE-Servo 3 aligns with the physical system's curriculum, covering a comprehensive range of over 30 concepts. These include modeling, parameter identification, position and speed control, lead control, stability analysis, steady-state error, moment of inertia, pendulum modeling, crane control, and pendulum balance control.

Similar to its physical counterpart, the virtual QUBE-Servo 3 integrates a DC motor alongside inertia disk and inverted pendulum modules. Rotary encoders accurately gauge the angular position of both the DC motor and pendulum, while software-based tachometers measure their respective angular velocities.

Key Features:

  • Provides high-fidelity lab experiences akin to physical lab equipment use
  • Available as a 12-month, multi-seat subscription
  • Grants full access to system parameters through MATLAB®/Simulink®
  • Offers a comprehensive ABET-aligned curriculum mapped to popular control engineering textbooks

DC Motor (Inertia Disk) Module

  • Hardware integration
  • Filtering
  • Step response modeling
  • Block diagram modeling
  • Parameter estimation
  • Frequency response modeling
  • State-space modeling
  • Friction identification
  • Stability analysis
  • Second-order systems
  • Routh-Hurwitz stability
  • Nyquist stability
  • PD control
  • Lead Compensator
  • Proportional control
  • Steady-state error
  • Load disturbance
  • Robustness
  • Optimal control
  • Introduction to digital control
  • Discrete stability
  • Introduction to discrete control

Pendulum Module

  • Moment of inertia
  • Pendulum modeling
  • State-space modeling
  • Pendulum balance control
  • Swing-up control
  • LQR state-feedback balance control
  • Pole-placement state-feedback balance control

More Information

Visit Quanserfor more information.
PDF icon Download Data Sheet

Request Information

Related Products:

Qube – Servo 3

Lab Equipment for Control Systems
Quanser Qube Servo 3
Teaching platform for controls and mechatronics
Lab Equipment for Control Systems
Teaching platform for controls and mechatronics

The Quanser Qube-Servo 3 is a portable, fully integrated servomotor platform designed specifically for teaching control concepts at the undergraduate level. The system is equipped with a high-quality direct-drive brushed DC motor, two encoders, an internal data acquisition system, and an amplifier.

Qube Teaching Studio

Control and Dynamics Engineering Lab

Quanser's Qube Teaching Studio features cutting-edge hardware, software, digital replicas, and a mobile app, so educators gain a complete teaching package. The Qube-Servo 3, known for reliability and performance, forms the foundation of hands-on learning. The digital-twin technology offers virtual accessibility, freeing students from lab constraints. Supported by QUARC and Quanser APIs, seamless control system development across platforms is ensured. Complemented by the 'Experience Controls' digital textbook, instructors access interactive resources for an unparalleled teaching experience.
