Same as the physical Rotary Servo Base Unit, the virtual system features a DC motor that drives a smaller pinion gear. This gear is fixed to a larger middle gear that rotates on the load shaft. The position of the load shaft is measured using a high-resolution optical encoder or a potentiometer.

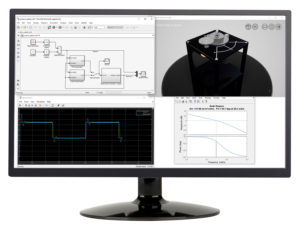

QLabs Virtual Rotary Servo is a fully instrumented, dynamically accurate digital twin of a classic Rotary Servo Base Unit system. It behaves in the same way as the physical hardware and can be measured and controlled using MATLAB®/Simulink® and other development environments. With QLabs Virtual Rotary Servo, you can enrich your lectures and activities in traditional labs, or bring credible, authentic model-based lab experiences into your distance and online control systems course.
QLabs Virtual Rotary Servo is available as a 12-month, multi-seat subscription. The platform is compatible with the physical Rotary Servo Base Unit curriculum, which covers modeling, position, and speed control topics.
To access and manage your QLabs Controls subscription, log in to your Quanser Academic Portal account.
The Rotary Servo Base Unit is the fundamental element of the Quanser Rotary Control experiments. It is ideally suited to introduce basic control concepts and theories on an easy-to-use and intuitive platform. Use it on its own to perform several experiments, or expand the scope of this unit by adding on other modules to teach an even wider range of control concepts.
Quanser's QLabs Virtual Rotary Flexible Link is a fully instrumented, dynamically accurate digital twin of the Quanser Rotary Flexible Link system. QLabs Virtual Rotary Flexible Link is available as a 12-month, multi-seat subscription. The platform is compatible with the physical Rotary Flexible Link curriculum, which covers various modeling and control topics.
Quanser QLabs Virtual QUBE-Servo 2 is a fully instrumented, dynamically accurate virtual twin of a classic QUBE-Servo 2 system. The platform is compatible with the physical QUBE-Servo 2 curriculum which covers over 30.
