QUBE-Servo 2

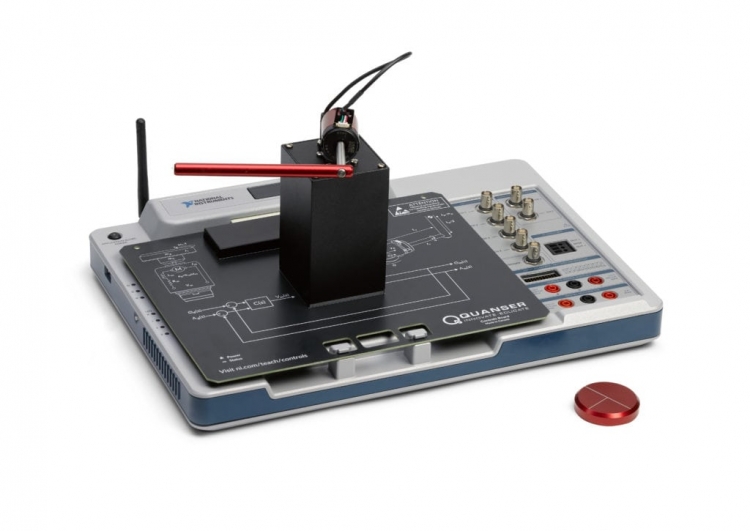

The Quanser QUBE™-Servo 2 is a fully integrated, modular servomotor lab experiment designed for teaching mechatronics and control concepts at the undergraduate level.
Quanser Controls Board
Investigate introductory and advanced controls.
The Quanser Controls Board offers a complete package for studying fundamental and advanced controls topics. The skills and hands-on experiences gained using the controls board are directly applicable to the challenges engineers face creating the complex systems that dominate the world today.
As automation and connected devices move from industry to commercial products and the home, an understanding of the design and implementation of control systems on hardware is essential. The courseware progression that accompanies the Quanser Controls Board begins with a grounding in the basics of modeling and control. Topics then transition into more complex strategies including optimal control, hybrid control, and digital control.
Features
- Highly Linear Motor Response: To enable directly relational modelling and control design
- Open and Customizable: Access and customize all levels of the interfacing and control software using LabVIEW
- Complete Package: Hardware and courseware enable courses to cover the essentials of introductory and advanced controls
- Simulink Compatibility: Accelerate control design and deployment using Quanser’s QUARC platform
Courseware
- DC Motor Modeling: First principles, experimental, frequency
- Speed Control: PID control, lead compensators
- Position Control: PID control, steady-state error
- Stability: BIBO, Nyquist, Routh Hurwitz
- Inverted Pendulum Control: Pole placement, LQR, swing-up
- Digital Control: Quantization, matched pole-zero, digital design
Workstation Configuration
The following additional components are required to complete your workstation, and are available separately:
- NI ELVIS III
Product Details
- Highly linear brushed DC motor
- Removable inertia load for variable dynamics
- High-resolution optical encoder and current sense
- Optional pendulum attachment for advanced controls
More Information
Related Products:
Rotary Flexible Link
The Rotary Flexible Link module is designed to help students perform flexible link control experiments. The module is designed to be mounted on the Rotary Servo Base Unit. This experiment is ideal for the study of vibration analysis and resonance and allows us to mimic real-life control problems encountered in large, lightweight structures that exhibit flexibilities and require feedback control for improved performance. The experiment is also useful when modeling a flexible link on a robot or spacecraft.
Linear Flexible Joint with Inverted Pendulum
The linear flexible inverted pendulum challenges students to gain advanced modeling and control experience by controlling both the damping of a flexible link, and an unstable inverted pendulum.
