Cam, Crank and Toggle Kit
Item Number:
ES12 - Experiment

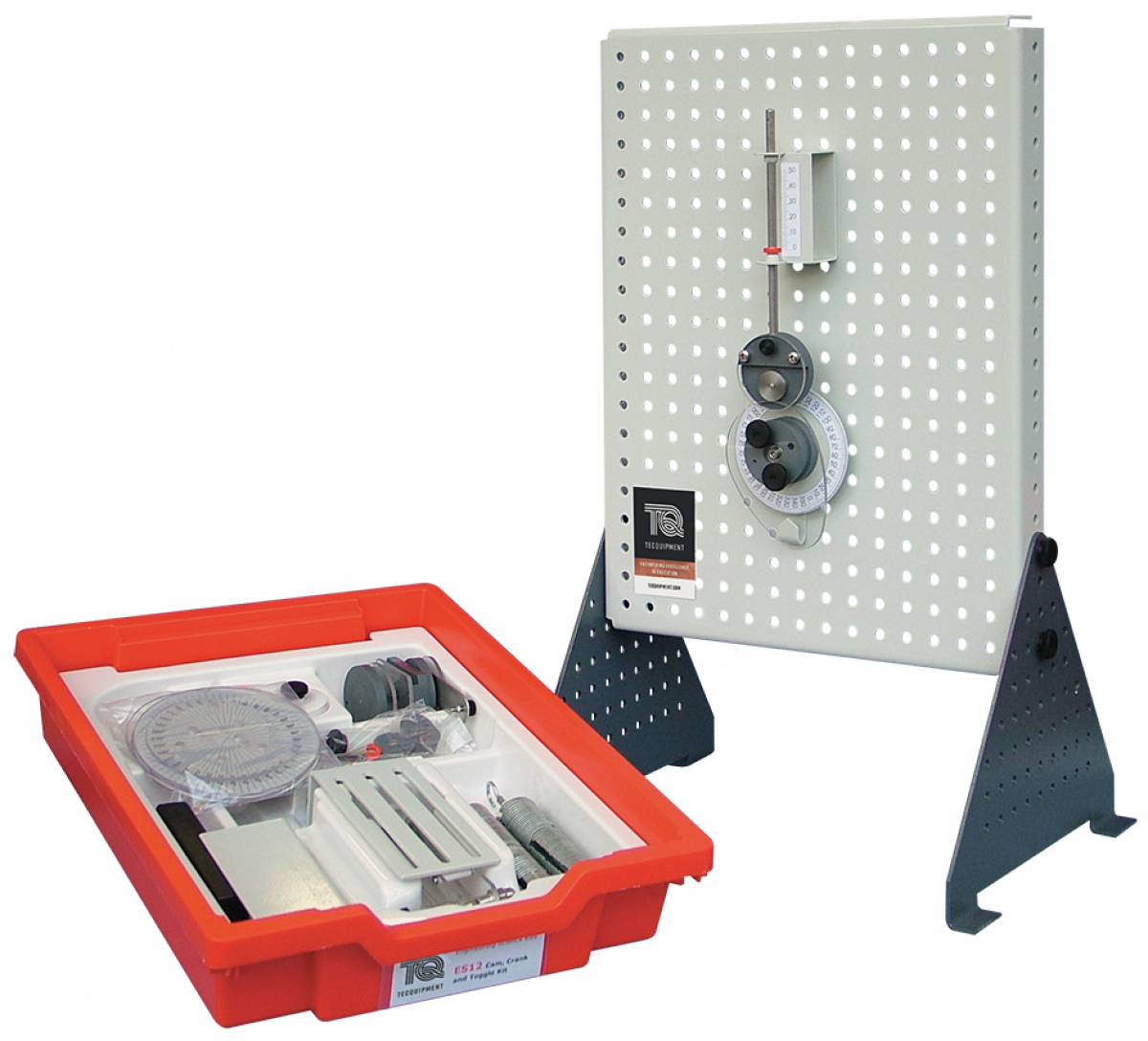

TecQuipment's Cam, Crank, and Toggle Kit (ES12) demonstrates the characteristics of a mechanical toggle, crank motion and the most popular shaped cams: pear, heart, round and snail.
This kit includes a crank and slider to show the relative forces during crank motion. It also includes four popular cam shapes to show their different characteristics. Another set of parts in the kit shows the characteristics of a mechanical toggle.
Students fit the crank and slider with weights and a spring balance to see the change in linear and rotational forces (moments) as the crank turns. They also use the slider with different followers on a set of four popular shape cams - heart, pear, spiral and round. This gives several cam and follower combinations to help students understand the different characteristics of each cam and why engineers choose between them for different applications.
The last set of parts in the kit has a simple linkage that allows students to see the characteristics of a toggle mechanism. Its shows the relative forces and angular conditions of the toggle in its initial state and how they affect the point at which it locks or ‘snaps’ into a horizontal state.

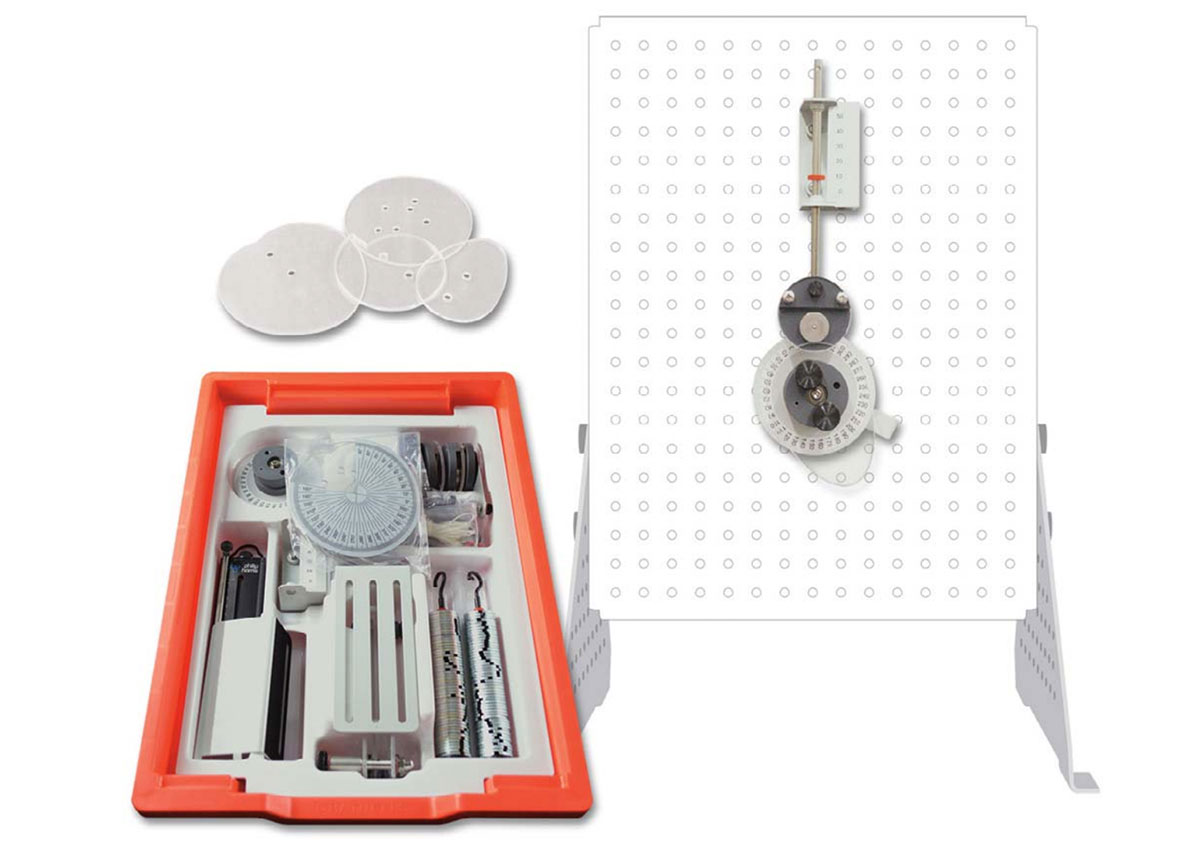

This versatile kit is part of a series that allows many experiments using different arrangements of their parts. Students, teachers or lecturers fit the parts of the kit to the Work Panel (ES1) (supplied separately) to study or show an engineering science topic.
TecQuipment supply a CD-ROM with the Work Panel (ES1). It includes all the worksheets, guidance notes, and lecturer notes (with answers) needed for typical experiments with each kit. The selection of parts in the kits and the choice of fixing points on the work panel means that teachers or lecturers may extend the experiments to an even greater range.
Learning Outcomes
- Displacement and angle characteristics of pear, heart, round, and spiral cams
- Characteristics of a mechanical toggle
- Turning moments and forces during crank motion
Key Features
- One of a series of 18 kits for experiments in fundamental engineering science topics
- For use on any engineering course from foundation to postgraduate
- Flexible and modular, each kit fits onto the work panel (ES1) for experiments and classroom demonstrations
- Supplied in a hard-wearing storage tray with a molded insert to hold parts securely and a graphical list to help check the kit contents
- Rugged and durable parts for safe ‘hands-on’ experiments, allowing better understanding
- Contains all parts needed for experiments with a mechanical toggle, crank motion, and four popular shapes of cam
