Francis Turbine
The Francis Turbine is a laboratory-scale reaction turbine for use with TecQuipment’s Digital Hydraulic Bench (H1F, available separately).
Francis Turbine
Item Number:
MFP101D - Experiment

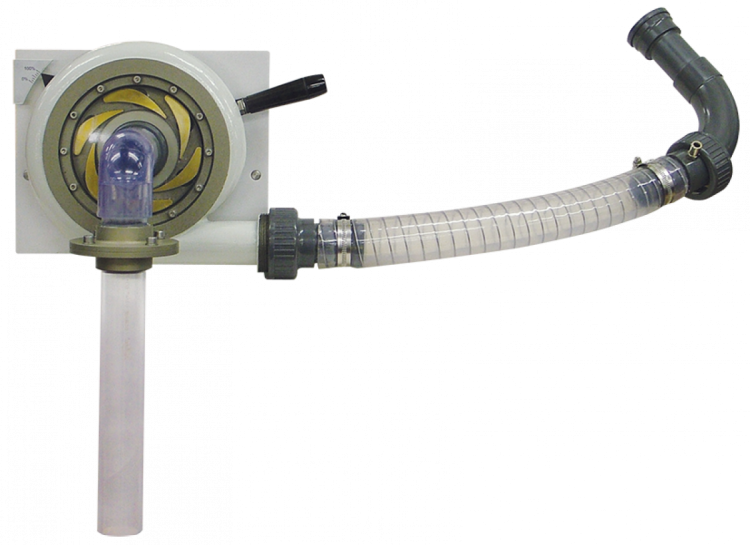

The Francis Turbine is a reaction turbine. It is the most common turbine in the world, due to its ability to work for a wide range of applications. Its moving part (runner) is a radial impeller.
The turbine has an adjustable guide vanes that control the water flow in the turbine. They also direct the water at an angle to the blades of the impeller. Students learn how the guide vane setting affects how the turbine works. The turbine has a clear viewing window and draft tube so that students can see the turbine working.
Learning Outcomes
- Variation of turbine performance with inlet pressure and flow rate
- Variation of turbine performance with speed
- Non-dimensional performance characteristics
