Deflection of Beams and Cantilevers Kit
TecQuipment's Deflection of Beams and Cantilevers Kit (ES4) demonstrates the deflection of beams of different materials and dimensions, held on different supports both clamps and knife edges.

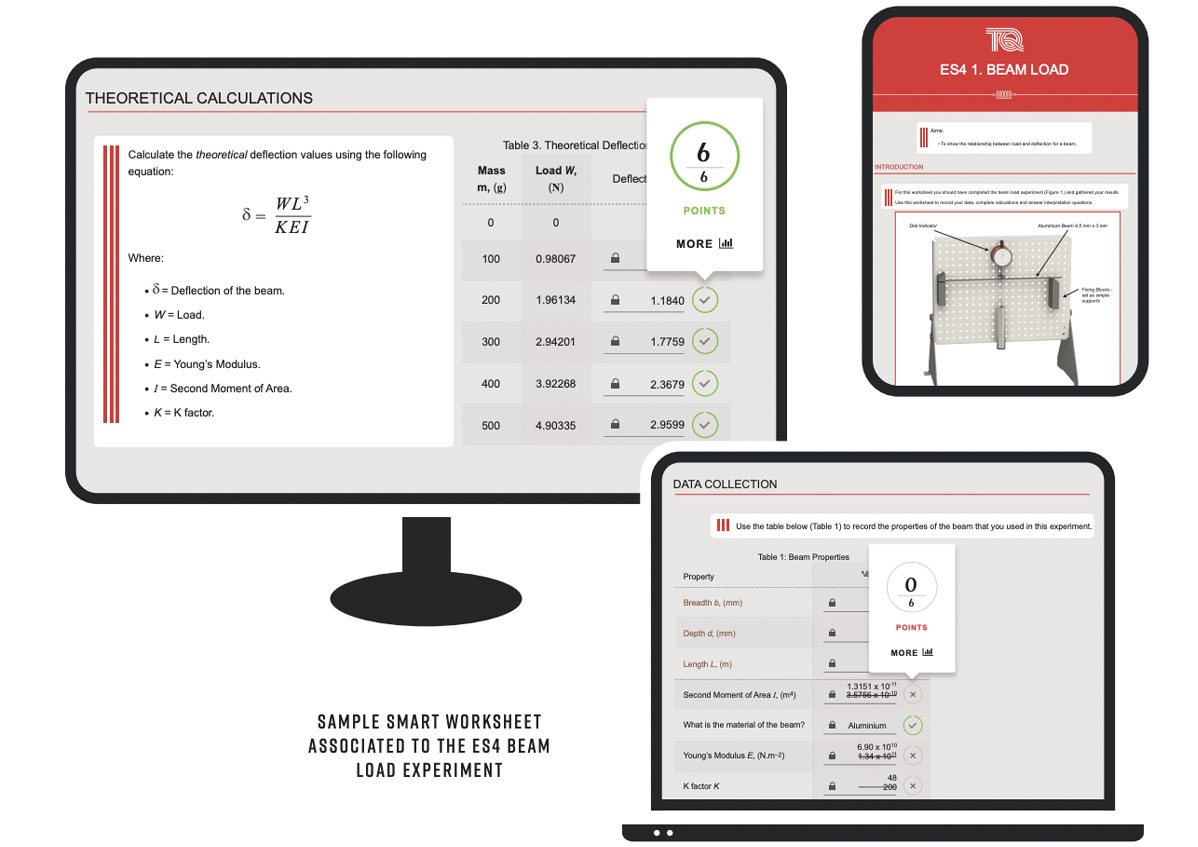

Smart Worksheet
Item Number:
ESSW - ANCILLARY
Enhancing teaching capabilities and complementing students’ learning using ready-made, online and auto-graded assessments that are compatible with selected experimental kits in the Engineering Science range.
Worksheets currently available for the following Engineering Science kits:
- Forces and moments (ES2 and ES3):
• Centre of Gravity
• Triangle of Forces
• Principle of Moments
• Levers - Deflection of Beams (ES4):

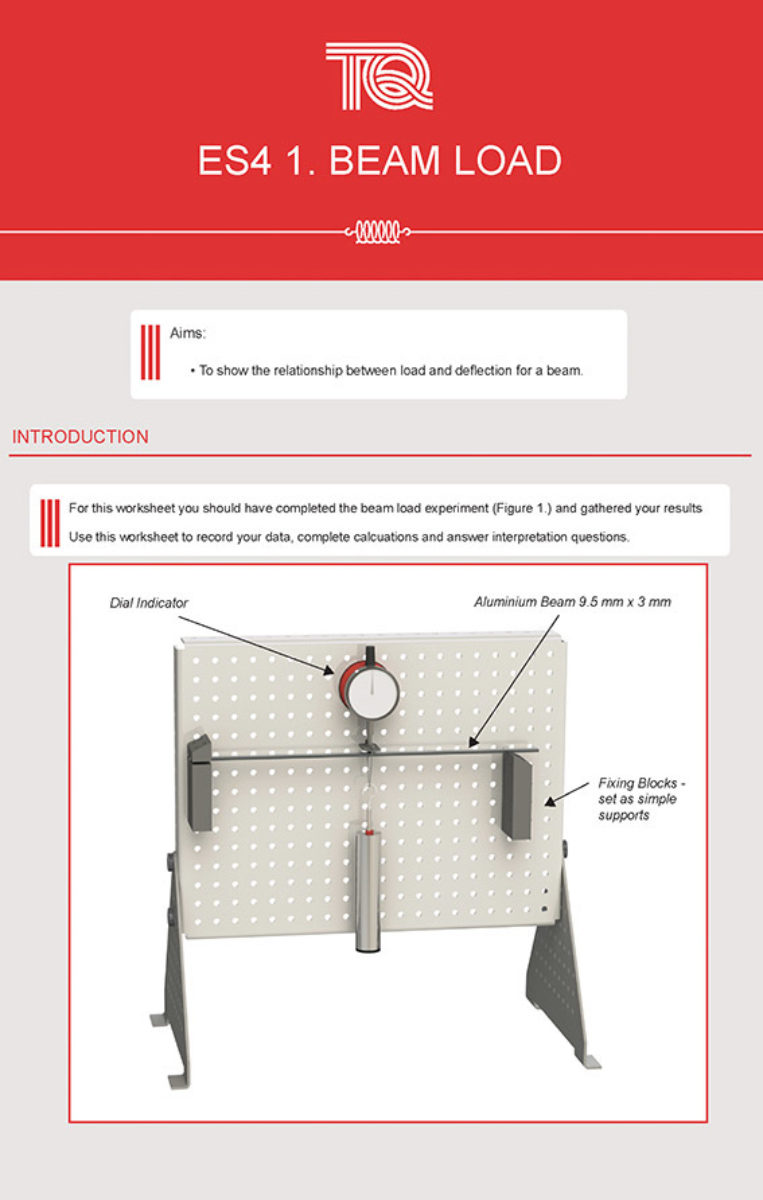

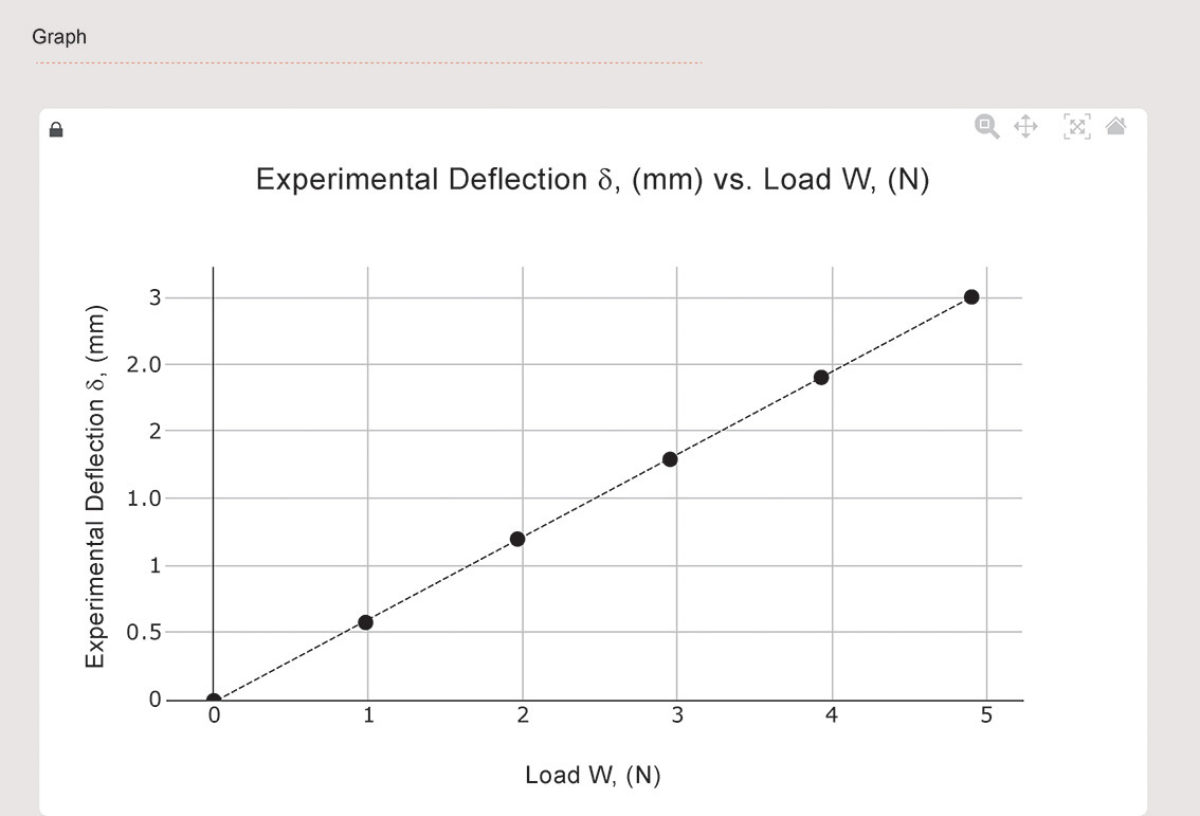

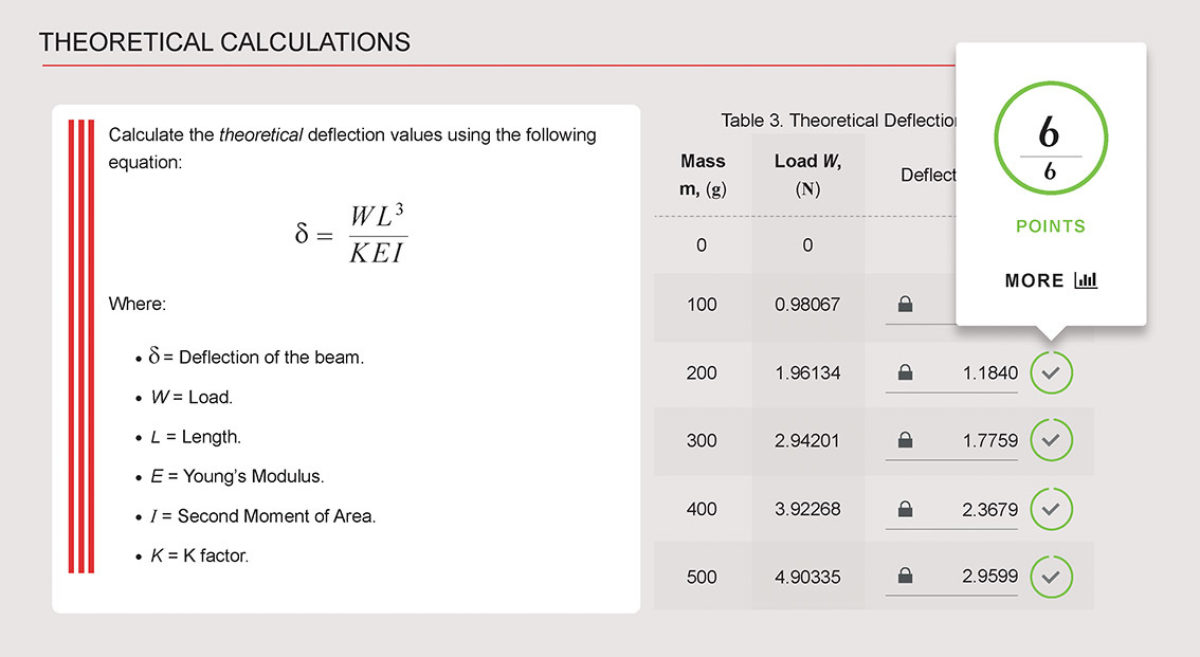

• Beam Load

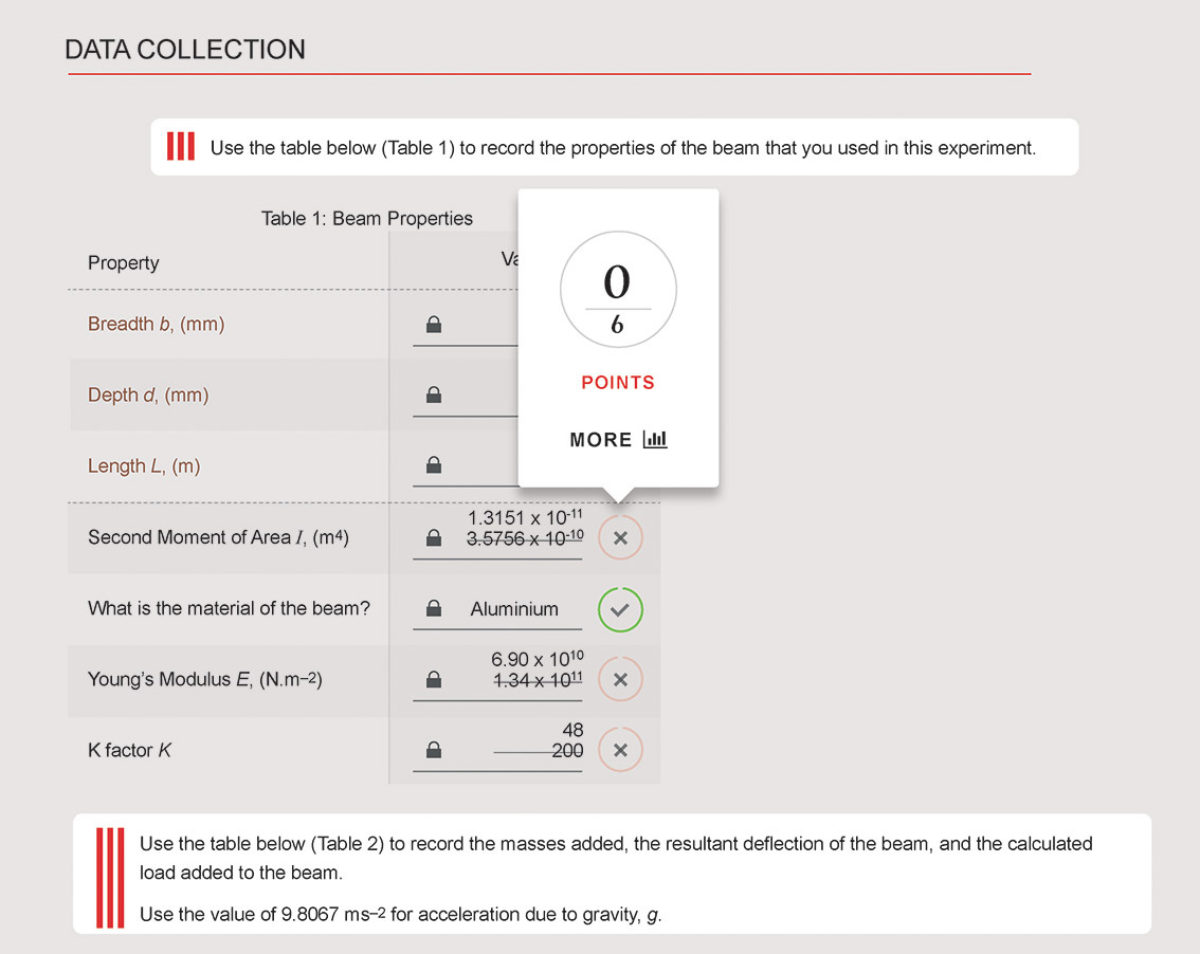

• Beam Dimensions
• Beam Length - Torsion (ES5):
• Torque and Diameter - Strength of Materials (ES6):
• Tensile Testing - Drive Systems (ES11 and ES13):
• Chain Drive
• Belt Drive
• Spur Gears - Simple mechanisms (ES14):
• Crank and Slider
Benefit for Students
- Enabling development and independent thinking with ready-made exercises
- Gain confidence in learning with instant, personalised feedback
- Master key engineering principles with tailored practice before submission, with immediate and clear scoring
- Practice assessments anywhere, anytime with online access and auto-save functionality
Benefit for Educators
- Enhance and improve teaching capabilities with a full ready-made dashboard and worksheet
- Save hundreds of hours with ready-made exercises and student reports
- Effectively communicate with students through notifications and reminders on the online management system
- Gain detailed insight into student learning progress with the timeline mode feature
- Tailor work with the option of ready-made quizzes and assessments
More Information
Standard Features
- Five-year warranty
- ISO9001 certified manufacturer
