Reciprocating Compressor Module
Allows students to study and perform tests on a reciprocating compressor: to understand how it works and calculate its performance.
Two-Stage Compressor Test Set
Item Number:
GT103

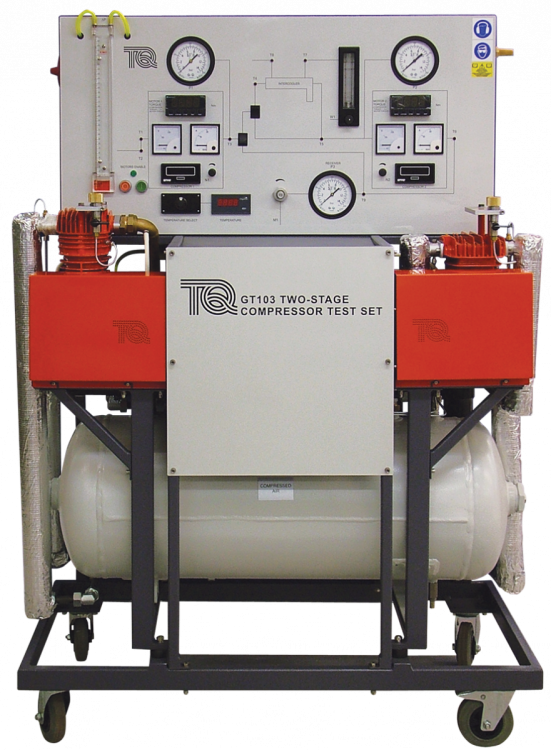

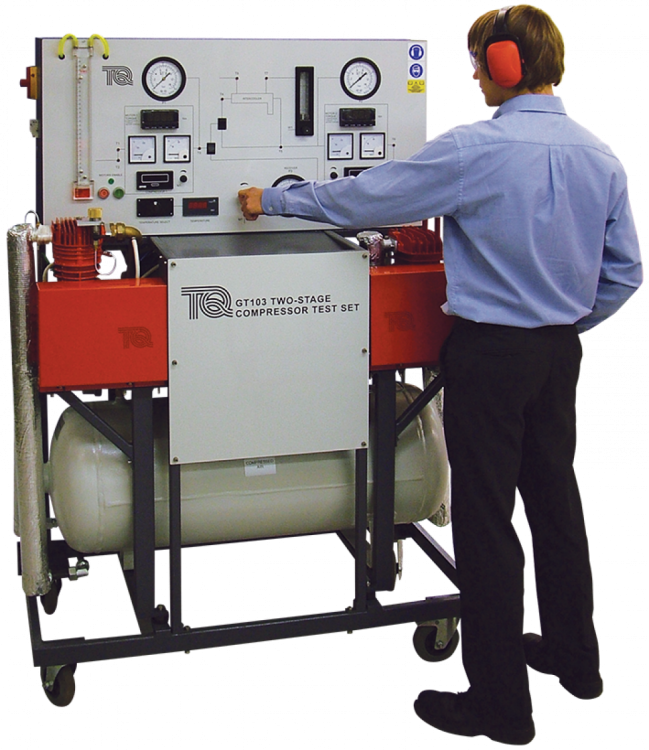

This test set has two independently-controlled, motordriven compressors, intercooler and air receiver. It works as a single-stage, two-stage or two-stage compressor with intercooler. All controls and instrumentation are on an easy-to-operate mimic panel.
Electric motors and low-maintenance toothed belts drive two twin-cylinder, air-cooled reciprocating compressors. Electronic drive units independently control both motors. Meters show motor electrical power consumption of each motor. A close-coupled load cell on each motor measures torque. A sensor on each motor measures speed, shown by a digital indicator. The product of the torque and speed gives true shaft power.
To allow students to study different types of air-compressor systems, diverter valves allow air to move in different directions. These include:
- From the first stage to the receiver
- Directly to the second stage
- To the second stage, by means of the integral water-cooled intercooler
Independent control of the two compressor speeds allows flexibility to match the two compressors under different conditions. Interlocks allow safe changes from one method of operation to another while the equipment works, and prevent misuse. For safety, all pressurised lines have relief valves.

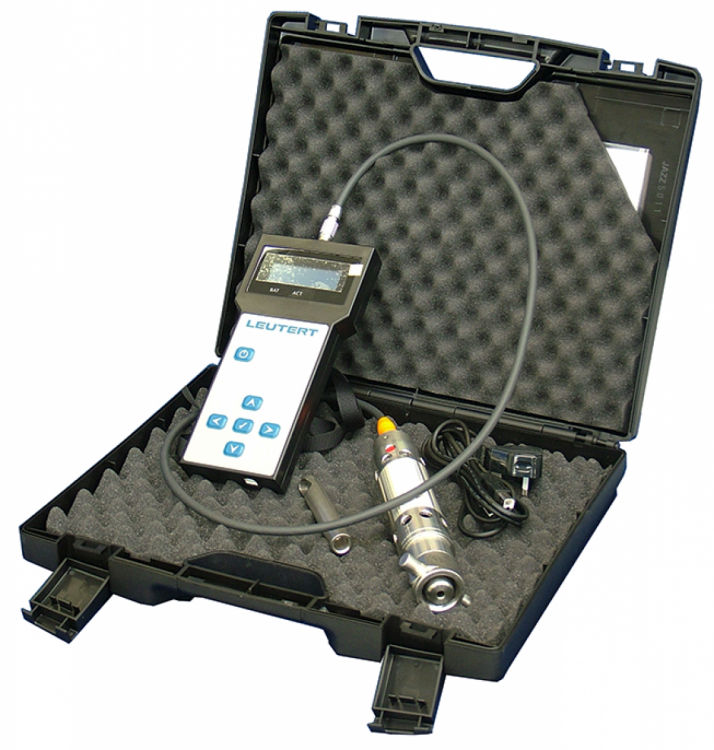

To help produce pressure and volume diagrams, TecQuipment offers the optional Pressure Indicator (GT103a). It fits to an adaptor on each of the two compressors to measure the pressure changes during a compression cycle. One Pressure Indicator is enough to test each compressor, one at a time. However, you may choose to use two for convenience.
