Ball and Hoop Apparatus
Item Number:
CE109 - Experiment

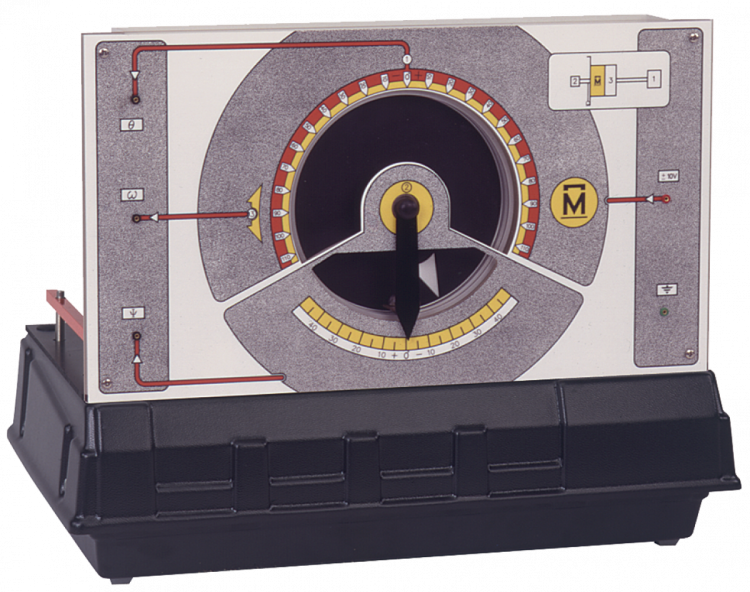

The CE109 Ball and Hoop Apparatus shows the use of electromechanical servo systems for position and velocity control. It also works as a model to show liquid slop problems, for example: aircraft missile fuel storage, fuel tankers and industrial pumping systems.
The apparatus has a steel ball that rolls inside a hoop. The hoop is free to rotate, but controlled by a servomotor. Transducers give outputs of the hoop and ball positions. When the hoop is under angular position control, the ball moves like a cylindrical pendulum. This allows students to use it as a model for the study of liquid slop dynamics.
Advanced studies cover:
- The influence of liquid slop behaviour on vehicle control system design
- The use of ‘pole zero’ in the analysis of control systems
TecQuipment recommend that you use the optional Tachometer (OT1) for experiments in calibration of hoop velocity. Also, if you are not using the optional software, then an Oscilloscope (OS1) will help to analyse the transient signals in some experiments.
Standard FeaturesLearning OutcomesRecommended Ancillaries
Standard Features
- Self-contained and compact bench-mounting unit for basic control of position or speed, and advanced studies of liquid slop
- Shows the problems of speed and position control of a mobile body or liquid in a container
- Mimics industrial, aeronautical, fluid transport and pumping system problems with realistic results
- All inputs and outputs buff ered for connection to TecQuipment’s optional controllers or other suitable controllers
- Front panel includes a mimic diagram of the process so that students can see what they are controlling
Learning Outcomes
The flexible design of the equipment allows the user to develop many other analysis and control exercises to suit their needs. It is good for extended or advanced control experiments, and is ideal for student project work.
- The design and analysis of servo control systems for position and velocity control
- The analysis and modelling of liquid slop dynamics
- The use of ‘pole zero’ in the analysis of control systems
Recommended Ancillaries
OPTICAL TACHOMETER
OT1 - Ancillary
A compact hand-held optical tachometer with a 5-digit high-brightness LED display and a speed range 3 to 99 999 RPM.
