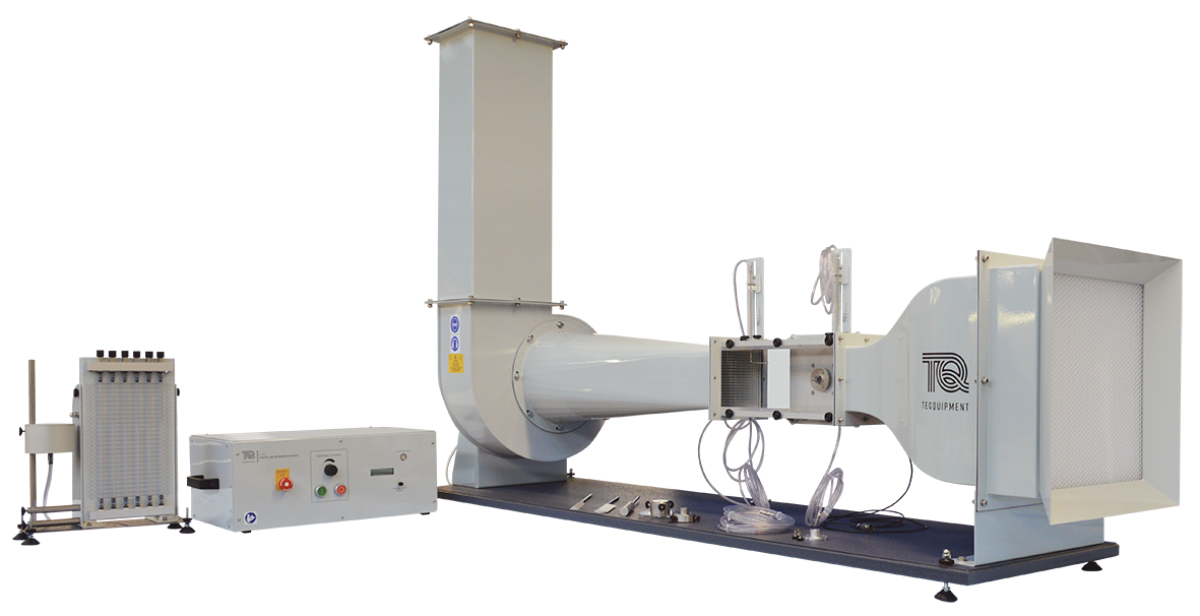

The Bench-Top Wind Tunnel offers a complete system ready for aerodynamic experimentation. A range of models and all necessary instrumentation are included to provide accurate results, suitable for undergraduate study and research projects.
Pitot tubes attach to the working section and connect to a liquid manometer so students can analyze pressure at different positions and calculate airspeed. TecQuipment supply a two-component balance with the Wind Tunnel. It uses an electronic force sensor to measure the lift or drag forces on models fitted to the working section. It has a clear digital display giving a direct reading of the measured force value, for real-time data collection.
A bench-mounting metal frame holds all parts of the wind tunnel in one compact unit. Air enters the tunnel through an aerodynamically designed effuser (inlet cone) and honeycomb flow straightener that accelerates the air linearly. It then enters the working section and passes through a grille before moving through a diffuser and then to a variable-speed fan. The grille protects the fan from damage by loose objects. The air leaves the fan, passes up through a silencer unit and then back out to atmosphere.
A controller with an electronic drive allows the user to vary the fan speed (and air velocity) accurately from zero to full speed. The electronic drive keeps the chosen speed constant.
The working section of the tunnel has a square section of removable transparent sides with fixing points to support the wind tunnel models.
Standard FeaturesLearning OutcomesRecommended Ancillaries
A wide variety of subsonic aerodynamics experiments, including:
AFA11 - Ancillary

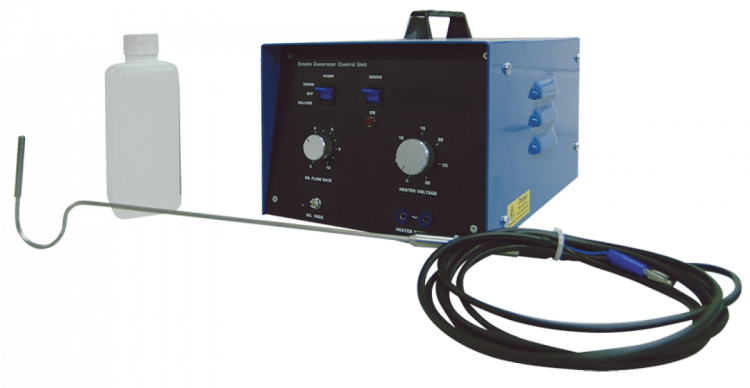

This smoke generator and probe are an optional ancillary to TecQuipment's AF1125, AF1450 and AF1600. It allows the observation of airflow in subsonic wind tunnels and other airflow situations.
A compact, practical open-circuit suction wind tunnel for studying aerodynamics. The wind tunnel saves time and money compared with full-scale wind tunnels or airborne laboratories, and it offers a wide variety of experiments.
TecQuipment's Subsonic Wind Tunnel 600MM (AF1600S) is an open circuit suction subsonic wind tunnel with a working section of 600 mm by 600 mm and 1250 mm long. The package includes a Three-Component Balance, Dual Axis Pressure Traverse, and associated instrumentation such as a 32-Way Pressure Display Unit and Versatile Data Acquisition System (VDAS-F).
The complete starter set includes TecQuipment’s Subsonic Wind Tunnel (AF1300), the Basic Lift and Drag Balance (AF1300Z) and the Three-dimensional Drag Models (AF1300J) - all parts needed for experiments in aerodynamic drag.
