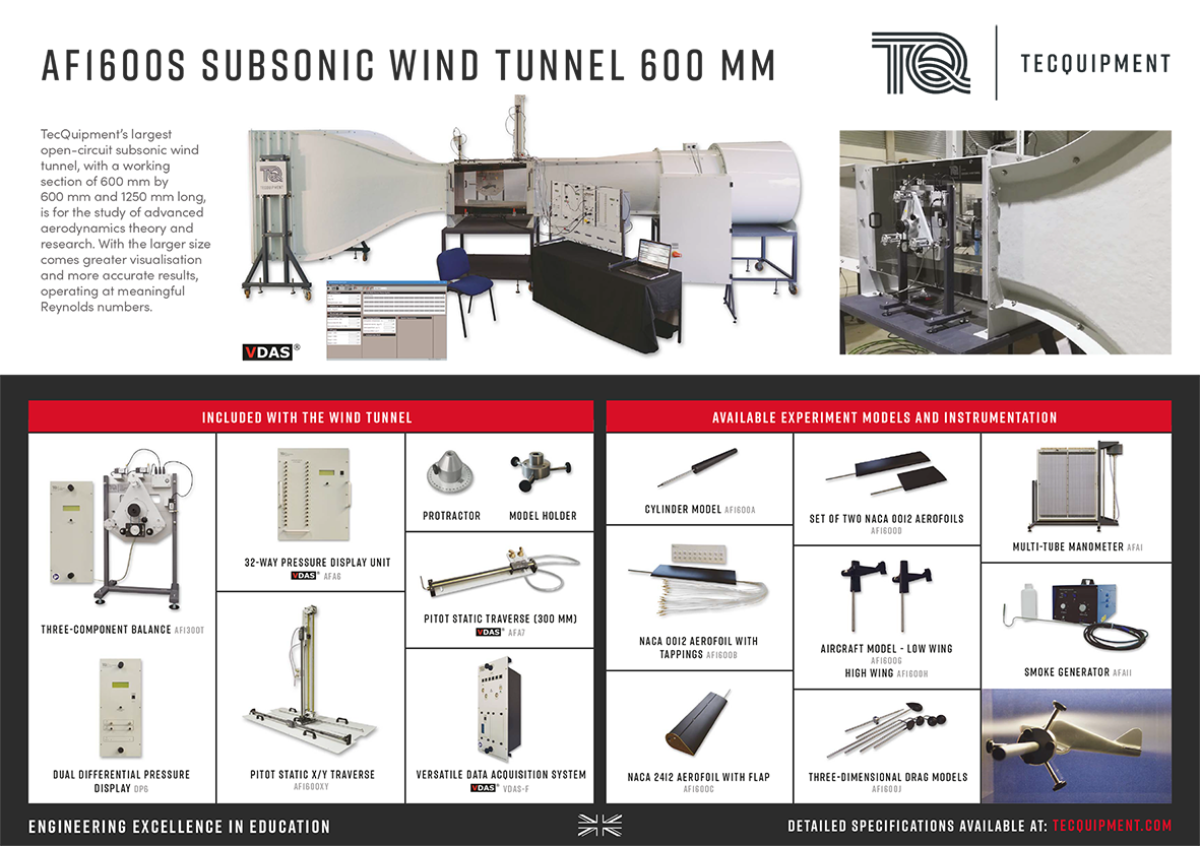

A practical open-circuit suction wind tunnel for experiments in aerodynamics. The Subsonic Wind Tunnel is a cost effective option to provide extensive experimental capabilities in aerodynamics.
The wind tunnel gives accurate results and is suitable for undergraduate study and research projects. TecQuipment offers a comprehensive range of instrumentation, including a computer-based data acquisition system.

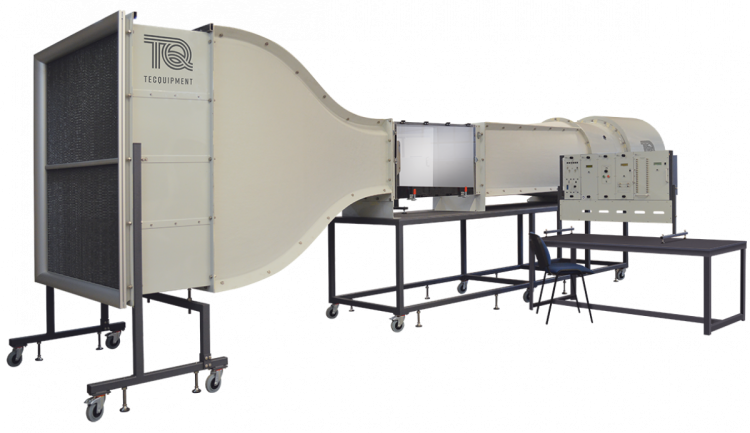

Air enters the tunnel through an aerodynamically designed effuser (cone) that accelerates the air linearly. It then enters the working section and passes through a grille before moving through a diffuser and then to a variable-speed axial fan. The grille protects the fan from damage by loose objects. The air leaves the fan, passes through a silencer unit and then back out to atmosphere.
A separate control and instrumentation unit controls the speed of the air velocity in the working section and supplies electrical power to other instruments.
The working area of the tunnel is a square section with a clear roof, sides and floor. The sides are removable. The floor and each side panel has a special position to support wind tunnel models. Supplied with the wind tunnel are a protractor and a model holder to support and accurately adjust the angle of any model fitted.
Two Pitot-static tubes are provided with the wind tunnel. One is fixed near to the inlet of the working section and measures the air-flow rate. The second Pitot-static tube is attached to a two-axis traverse that allows movement horizonally (fore to aft) and vertically, for measurements throughout the working area. The traverse positions are measured using integrated DTI devices. They connect to digital pressure displays so users can observe detailed pressure readings.

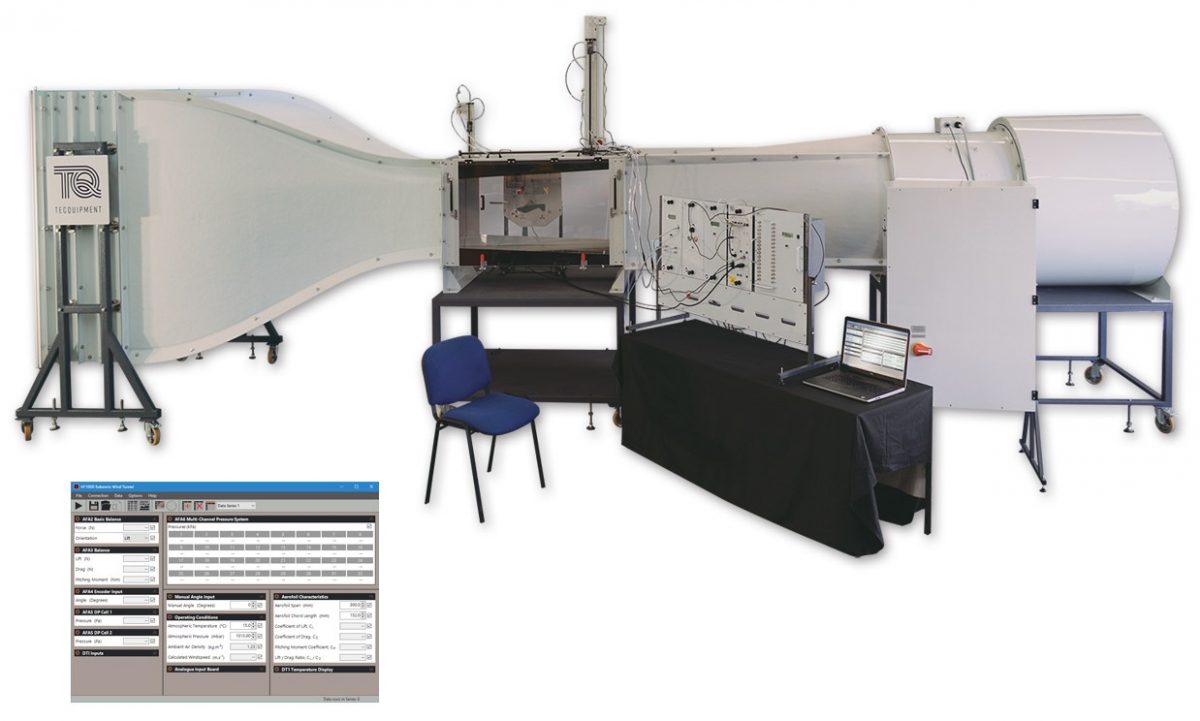

A metal frame supports the wind tunnel. The frame includes lockable castors for convenient mobility. Electronic sensors on the included instrumentation can connect to TecQuipment’s Versatile Data Acquisition System (VDAS®, included). VDAS® allows accurate real-time data capture, monitoring, display, calculation and charting of all relevant parameters on a suitable computer.
What's Included?Learnnig OutcomesKey FeaturesExperiments Ancillaries
A wide variety of subsonic aerodynamics experiments (some need ancillaries), including:
AFA1 - Ancillary

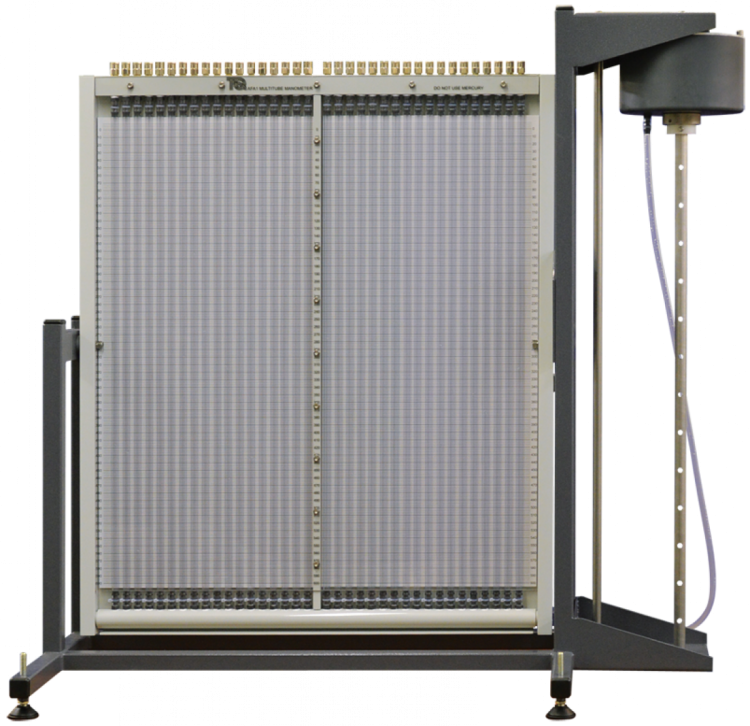

A tilting 36-tube manometer for use with the AF1300, AF1450 and AF1600 Subsonic Wind Tunnels, other TecQuipment products, or as a general purpose instrument.
AFA10 - Ancillary
This smoke generator and probe is an optional ancillary to TecQuipment's AF1300 Subsonic Wind Tunnel to allow the observation of airflow in subsonic wind tunnels and other airflow situations.
AFA7 - Ancillary

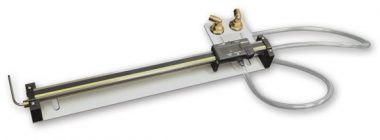

A traversing Pitot-static tube with electronic position measurement for use with TecQuipment’s Subsonic Wind Tunnels (AF1300, AF1450, AF1600).
AF1600H - EXPERIMENT
The high wing model aircraft with NACA profile wings for use with the Large Subsonic Wind Tunnel (AF1600) is good for experiments with lift, drag, and pitching moment of fixed-wing aircraft.
AF1600G - EXPERIMENT
A low wing model aircraft with NACA2415 profile wings for use with TecQuipment's Large Subsonic Wind Tunnel (AF1600S).
AF1600J - EXPERIMENT
A set of different shape models for use with the Large Subsonic Wind Tunnel (AF1600S), each with an identical frontal area to allow students to compare the different drag coefficients for each shape. Includes a dummy stem for tests to cancel out the drag due to each model’s support arm.
AF1600D - EXPERIMENT
This set of two NACA0012 aerofoils allows students to compare the results from a full-width aerofoil with a half-width aerofoil.
AF1600C - EXPERIMENT
A 150mm chord NACA2412 aerofoil with 590 span featuring a variable flap that adjusts +/- 90 degrees for use with the AF1600 Subsonic Wind Tunnel.
AF1600B - EXPERIMENT
A 150 mm chord NACA0012 aerofoil with 595 mm span and 20 static pressure tappings.
AF1600A - EXPERIMENT
A cylinder model that spans the full width of the working section of the AF1600S Subsonic Wind Tunnel.
The complete starter set includes TecQuipment’s Subsonic Wind Tunnel (AF1300), the Basic Lift and Drag Balance (AF1300Z) and the Three-dimensional Drag Models (AF1300J) - all parts needed for experiments in aerodynamic drag.
An open circuit suction subsonic wind tunnel with a working section of 450 mm by 450 mm and 1000 mm long. Package includes the Aerofoil with Tappings, a Three-Component Balance, two Differential Pressure Transducers, a 32-Way Pressure Display Unit and data acquisition (VDAS-F).
TecQuipment's Subsonic Wind Tunnel 600MM (AF1600S) is an open circuit suction subsonic wind tunnel with a working section of 600 mm by 600 mm and 1250 mm long. The package includes a Three-Component Balance, Dual Axis Pressure Traverse, and associated instrumentation such as a 32-Way Pressure Display Unit and Versatile Data Acquisition System (VDAS-F).
