Flutter Wing

Wing flutter is a complex event that arises from a combination of forces. Dynamic, fluid, and structural forces all combine to create an unstable reaction. Although not restricted to just wings, it is most commonly associated with wings. Due to its highly complex nature, it is often misunderstood. It is a type of resonance when, if the combined forces approach a particular (resonant) frequency, the induced amplitudes grow and can easily cause the wing to break.

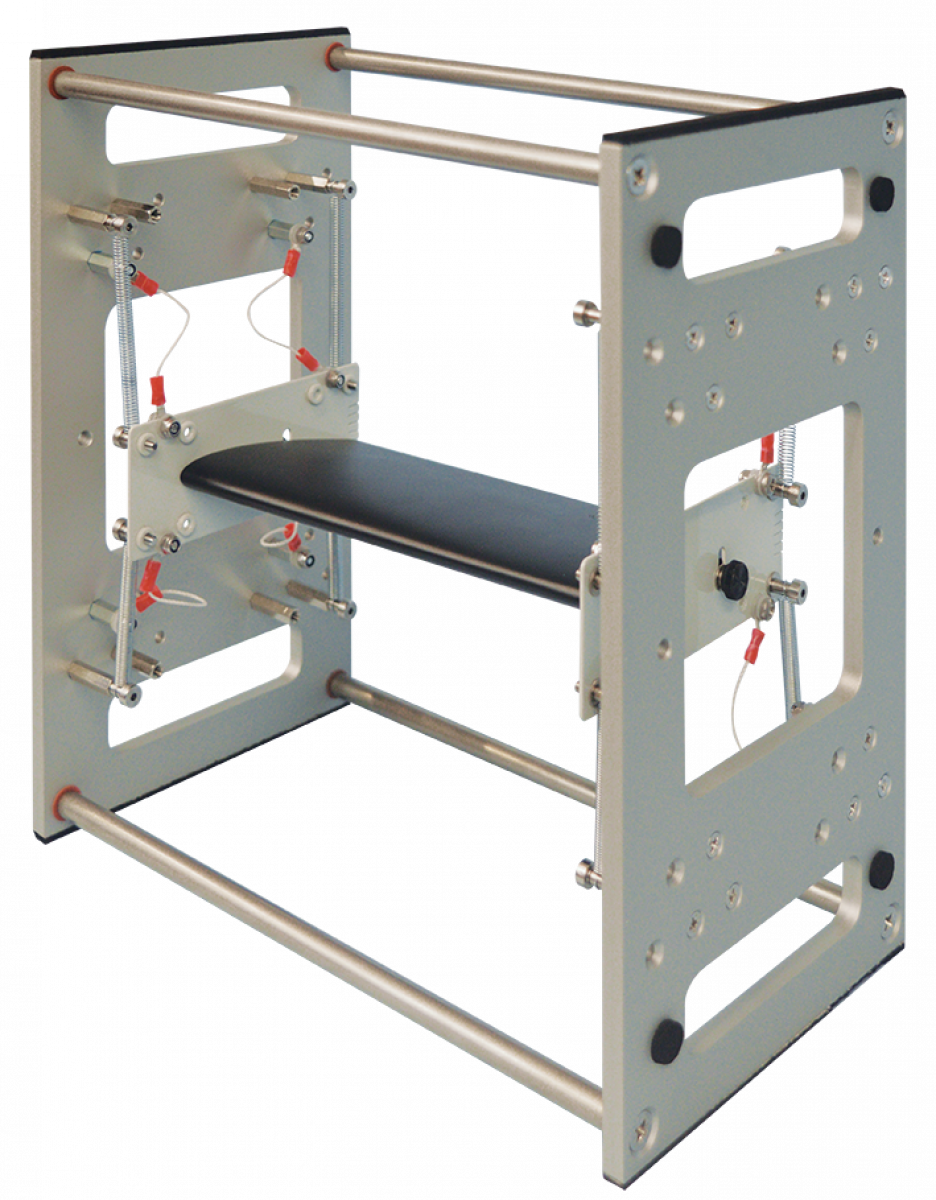

The aerofoil suspended on springs within a frame is a NACA 0015 profile. At both ends of the aerofoil are mounting places that allow you to increase the angle of attack. String tethers are in place to limit amplitude during extreme oscillations to protect the aerofoil from damage.

Learning Outcomes

• Understand the instability that wing flutter causes using an aerofoil that is suspended within a frame

Key Features

• Cylinder, aerofoils, aircraft models, drag models, flat plate and flat plate boundary layer models for use with TecQuipment’s Subsonic Wind Tunnel (AF1300)
• Allow realistic and accurate experiments and demonstrations
• Simple and quick to set up and use
• Some models include pressure tappings for pressure distribution experiments
• All models work with the other optional instruments for the Subsonic Wind Tunnel
• High-quality surface-finish on all models for accurate results
